OD26m High definition video slip ring 2 sets SDI slip ring Multiple signal combination slip ring
High Definition Slip Rings – DHS Series
High definition conductive slip rings are based on high-definition multimedia interfaces and are used for rotating transmission of uncompressed audio and video signals. High definition video slip rings include HDMI slip rings, SDI slip rings, 1080P conductive slip rings, etc., which are widely used in new technology fields such as broadcasting and television, photography, video, and VR.
Product Features
- Gold-on-gold contact
- Supports 1080P and 720P video signals
- Lightweight, compact structure, and minimal installation space required
- Stable performance, no packet loss or crosstalk, low insertion loss, and high return loss

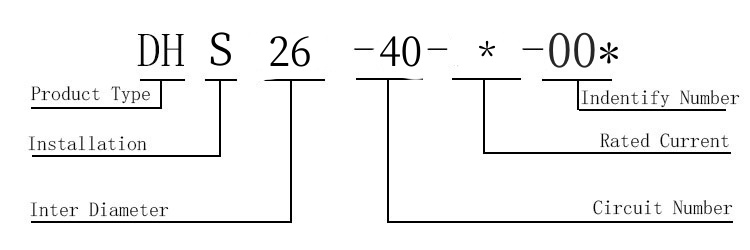

Product Naming Description
1)Product type: DH—electric slip ring
(2)Installation method: S—solid shaft slip ring
(3)Outer diameter of solid shaft slip ring:26-26 mm
(4)Total circuits :40-40 circuits
(5)The rated current or it will not be marked if it passes through a different rated current for the circuits.
(6)Identify number: –XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHS026-40-10A-002 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHS026-73-30A-002; if there are more of this model in the future, and so on -003 , -004, etc.
