OD16mm Miniature slip ring with aluminum alloy housing 6channels 1A
OD16mm – Miniature Slip Ring DHS016 Series
DHS016 series miniature slip rings, with an outer diameter of 16mm and a 6-channel, 1A rating, are designed by Ingiant Technology for security surveillance, high-speed dome cameras, drones, stabilizers, PTZ cameras, and small electromechanical products. They are primarily used for transmitting weak currents and control signals. They utilize precious metal brush wires, V-grooved conductive rings, and gold-on-gold contact technology. Through precision assembly, they achieve extremely low dynamic resistance fluctuations and rotational torque.
Product Features
- Compact 16mm outer diameter
- Six channels
- Low torque, less than 0.06 Nm
- Smooth and reliable operation
- Low electrical noise
- Easy installation
- Long service life

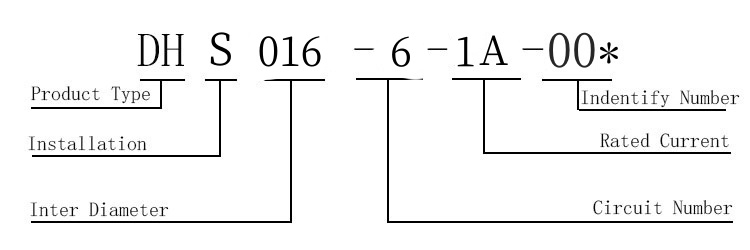

Product Naming Description：
- Product type: DH—electric slip ring
- Installation method: S—solid shaft slip ring
- Outer diameter of solid shaft slip ring: 016-16 mm
- Total circuits: 6-6 circuits
- The rated current or it will not be marked if it passes through a different rated current for the circuits.
- Identify number: –XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHS056-28-5A-002 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHS056-28-5A-002; if there are more of this model in the future, and so on -003 , -004, etc.
