In the wave of Industry 4.0 and intelligent manufacturing, the interconnection and real-time data transmission of equipment have become the key to improving production efficiency. As the core equipment for achieving stable data transmission between rotating parts and fixed parts, industrial bus slip rings are like the "nerve conductors" of industrial systems, directly affecting the operating stability and reliability of automated production lines, intelligent warehousing and other equipment. This article will conduct an in-depth discussion on the core technology, application scenarios, and key points of purchasing industrial bus slip rings to help readers fully understand this important industrial component.
Working Principle

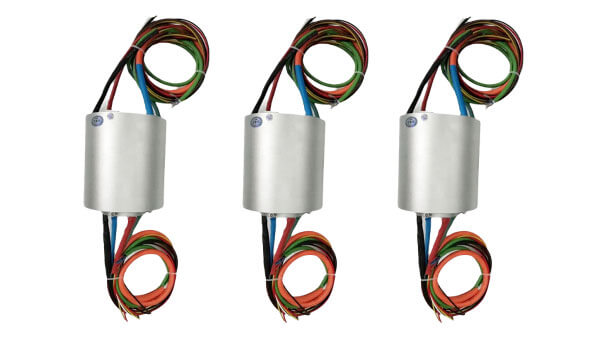

Industrial bus slip ring is an electrical connection device designed for industrial bus signal transmission, mainly used to realize industrial bus data communication between the rotating part and the fixed part of the equipment. Its basic structure consists of conductive ring, brush, insulating material, shell and bus signal processing module. Conductive ring and brush are the core components for realizing electrical connection. During the rotation of the equipment, the brush and the conductive ring maintain close contact and form a stable electrical path through sliding friction.
Unlike ordinary slip rings, industrial bus slip rings are optimized for the characteristics of industrial bus signals. Industrial bus signals have the characteristics of high data transmission rate, strong anti-interference requirements, and complex signal protocols. Industrial bus slip rings can effectively ensure the integrity and accuracy of industrial bus signals through special circuit design, shielding technology and signal amplification compensation measures, ensuring stable and reliable communication between devices.
3. Core technology analysis and technical parameters of industrial bus slip rings
3.1 Core technology analysis
a. Signal isolation and anti-interference technology: There are a large number of electromagnetic interference sources in the industrial environment, such as electromagnetic radiation generated by inverters, motors and other equipment during operation. Industrial bus slip rings use multi-layer shielding structure and signal isolation technology, and effectively block the influence of external electromagnetic interference on bus signals through metal shielding covers, magnetic ring filters and other methods. At the same time, the signals of different channels are electrically isolated to avoid crosstalk between signals and ensure the accuracy of data transmission.
b. High-speed signal transmission technology: With the continuous increase in the data transmission rate of industrial bus protocols (such as Gigabit Ethernet bus), industrial bus slip rings are designed with low-loss conductive materials, optimized circuit layout and impedance matching technology to reduce signal attenuation and distortion during transmission. For example, silver-plated conductive rings are used to improve conductivity, and microstrip line structures are used to optimize signal transmission paths to ensure stable transmission of high-speed signals.
c. Protocol compatibility design: There are many bus protocols in the industrial field, such as Siemens' Profibus and Rockwell's ControlNet. Industrial bus slip rings are compatible with a variety of industrial bus protocols through modular design and programmable signal processing circuits. Users can choose or customize slip rings that support specific protocols according to actual needs to improve the versatility and flexibility of the equipment.
3.2 Technical Parameters
a. Bus protocol support: clarify the types of industrial bus protocols that the slip ring can support, such as Profinet, EtherCAT, DeviceNet, CANopen, etc., to ensure compatibility with the equipment control system.
b. Data transmission rate: The data transmission rates of different types of industrial bus slip rings vary, generally ranging from tens of Kbps to 1Gbps or even higher. It is necessary to select products with appropriate rates according to the needs of the actual application scenario.
c. Working speed: According to the speed requirements of the rotating parts of the equipment, the working speed range of the industrial bus slip ring is usually 0-5000rpm, and special customized products can meet higher speed requirements.
d. Working temperature: The working temperature range of conventional industrial bus slip rings is -20℃-80℃. When used in special environments such as high temperature and low temperature, wide temperature products (such as -40℃-125℃) need to be selected.
e. Protection level: Common protection levels include IP54, IP65, IP67, etc. The higher the protection level, the stronger the dustproof, waterproof and corrosion-resistant capabilities. It should be selected according to the actual working environment of the equipment.
4. Application scenarios and equipment types of industrial bus slip rings
4.1 Industrial automated production lines
In automated production lines such as automobile manufacturing and electronic assembly, industrial bus slip rings are widely used in robotic arms, rotary workbenches, and automatic detection equipment. For example, automotive welding robots use industrial bus slip rings to achieve real-time transmission of control signals and feedback data to ensure that the robotic arms can accurately complete welding actions; rotary automatic detection platforms use slip rings to quickly transmit data from detection sensors to the control system to achieve efficient detection of products.
4.2 Intelligent warehousing and logistics
In intelligent stereoscopic warehouses, equipment such as stackers and shuttles need to communicate with the warehouse management system in real time during movement. Industrial bus slip rings can ensure that these equipment can stably transmit position information, control instructions and other data during lifting, horizontal movement and rotation, so as to achieve accurate storage and efficient scheduling of goods.
4.3 Wind power generation
During the rotation of the impeller of the wind turbine, the data of equipment such as blade angle sensors and vibration sensors need to be transmitted to the control system in the cabin. Industrial bus slip rings, with their high reliability and stable signal transmission capabilities, ensure that the operating data of the fan can be accurately and timely fed back in harsh outdoor environments, providing protection for the safe operation and optimized control of the fan.
4.4 Engineering machinery
In engineering machinery such as excavators and cranes, industrial bus slip rings are used to connect the rotating cab and the chassis control system to achieve the transmission of operating instructions and equipment status information. For example, when the excavator driver operates the handle, the control signal is quickly transmitted to the hydraulic system through the industrial bus slip ring to ensure accurate response of the excavation action.
5. How to choose high-quality industrial bus slip rings?
5.1 Clarify application requirements
Before purchasing, you need to understand in detail the working environment of the equipment, the type of industrial bus protocol used, the data transmission rate requirements, the rotation speed of the equipment and other parameters. For example, in an environment with a lot of dust and high humidity, you should choose a slip ring with a high protection level; if the equipment uses a specific industrial bus protocol, you need to ensure that the slip ring can support the protocol.
5.2 Investigate brand and reputation
Give priority to brands with a good reputation and rich experience in the field of industrial automation. You can learn about the quality stability, technical support capabilities and after-sales service level of brand products through industry forums, customer reviews, exhibition exchanges, etc. Well-known brands are usually more secure in R&D investment, production processes and quality control.
5.3 Verify product qualifications and test reports
Require suppliers to provide relevant product certification documents, such as ISO 9001 quality management system certification, CE certification, RoHS environmental certification, etc. At the same time, check the product's performance test report, such as signal transmission stability test, anti-interference ability test, high and low temperature environment test, etc., to ensure that the product meets the actual use requirements.
5.4 Consider customized services and technical support
Industrial application scenarios are complex and diverse, and some projects may require industrial bus slip rings with special specifications or customized functions. Choose a supplier that can provide customized services and customize the slip ring size, number of channels, protocol support, etc. according to actual needs. In addition, the supplier's technical support capabilities are also crucial, and they can provide timely and professional help in installation, debugging, troubleshooting, and other links.
6. Maintenance and troubleshooting of industrial bus slip rings
6.1 Daily maintenance
a. Cleaning and maintenance: Regularly clean the dust, oil and other impurities on the surface of the slip ring to prevent impurities from entering between the brush and the conductive ring and affecting the contact performance. Use dust-free cloth and special cleaning agent for wiping, avoid using highly corrosive cleaning agents.
b. Check the connection: Check whether the electrical connection and mechanical installation between the slip ring and the equipment are firm, ensure that the signal transmission line is not loose or damaged, and the flange mounting bolts are not loose.
c. Lubrication treatment: For industrial bus slip rings with bearings, regularly check the lubrication of the bearings, add or replace the grease according to the requirements of the product manual, and ensure the smooth operation of the bearings.
6.2 Troubleshooting
a. Signal transmission interruption: If the signal is interrupted, first check whether the electrical connection line is normal, whether there is a break or short circuit; secondly, check the degree of wear of the brush, and the excessively worn brush needs to be replaced in time; in addition, check whether there are scratches, oxidation and other problems on the surface of the conductive ring, and polish or replace it if necessary.
b. Data transmission error: Data transmission error may be caused by electromagnetic interference, signal attenuation or protocol incompatibility. Check whether the shielding measures of the slip ring are in place and whether there is a strong electromagnetic interference source; detect the loss of the signal transmission cable; confirm that the protocol supported by the slip ring is consistent with the device control system, and update the firmware or driver of the slip ring if necessary.
c. Abnormal heating: The heating of the slip ring may be caused by current overload, excessive contact resistance or poor heat dissipation. Check whether the actual working current of the equipment exceeds the rated current of the slip ring; check whether the contact pressure and contact area between the brush and the conductive ring are normal; clean the heat dissipation holes of the slip ring housing to ensure good ventilation and heat dissipation.
7. Future Trends: Technological Innovation of Industrial Bus Slip Rings
7.1 Higher Integration and Intelligence
In the future, industrial bus slip rings will integrate more functional modules, such as signal conditioning modules, data processing modules, status monitoring sensors, etc., to achieve real-time monitoring and self-diagnosis of the operating status of the slip rings. The built-in sensors collect data such as brush wear, temperature, vibration, etc., and feed the information back to the control system through the industrial bus, so as to facilitate early warning of faults, achieve preventive maintenance, and improve the reliability and operation efficiency of equipment.
7.2 Support for higher speed and more complex protocols
With the development of industrial Internet and 5G technology, the data transmission rate and protocol complexity of industrial buses will continue to increase. Industrial bus slip rings will be further optimized in design to support higher speed (such as above 10Gbps) data transmission, while being compatible with more new industrial bus protocols and communication standards to meet the strict requirements of intelligent manufacturing for data real-time and accuracy.
7.3 Application of new materials and new processes
The research and development and application of new conductive materials, insulating materials and wear-resistant materials will further improve the performance of industrial bus slip rings. For example, graphene composite materials are used to improve conductivity and wear resistance, and new polymer insulating materials are used to enhance insulation performance and high temperature resistance; at the same time, advanced manufacturing processes such as 3D printing technology will achieve the optimized design of slip ring structures and improve production efficiency and product quality.
8. Conclusion: Choose a reliable industrial bus slip ring supplier
As a key component in the field of industrial automation, the performance of industrial bus slip rings is directly related to the operating stability and production efficiency of the equipment. When choosing a supplier, you should not only focus on the product price, but also comprehensively consider product quality, technical strength, after-sales service and other factors. A reliable supplier can not only provide high-quality products that meet the needs, but also provide all-round support in technical consultation, installation and commissioning, after-sales maintenance and other links to ensure the smooth progress of industrial production.
9. FAQ
Q1: Can industrial bus slip rings support multiple bus protocols at the same time?
A1: Some industrial bus slip rings can support multiple bus protocols at the same time through modular design and programmable circuits, but when purchasing, you need to clearly explain your needs to the supplier and confirm the protocol compatibility of the product.
Q2: How long is the service life of an industrial bus slip ring?
A2: The service life of the slip ring is affected by factors such as working environment, frequency of use, and maintenance. Under normal working conditions and regular maintenance, the service life of industrial bus slip rings is generally 5-8 years; if the working environment is harsh or the use is frequent, the maintenance cycle needs to be shortened and the vulnerable parts need to be replaced in time.
Q3: What should be paid attention to when installing industrial bus slip rings?
A3: During installation, it is necessary to ensure the coaxiality of the slip ring and the rotating shaft of the equipment to avoid eccentricity causing poor contact between the brush and the conductive ring; strictly follow the instructions for electrical connection, pay attention to the correspondence between the positive and negative poles and the signal pins; after installation, conduct a trial run to check whether the signal transmission is normal and whether there is any abnormal noise or heating.
Q4: If the industrial bus slip ring fails, can it be repaired by yourself?
A4: For some simple faults, such as brush replacement, surface cleaning, etc., users can handle them by themselves according to the product manual; but for complex faults involving internal circuits, signal processing modules, etc., it is recommended to contact the supplier's professional technicians for repair to avoid secondary damage due to improper operation.
