In industrial production, environments with flammable gases, vapors, dust, or fibers—such as chemical plants, oil refineries, and grain processing facilities—are inherently high-risk. Here, even a tiny electrical spark from improperly designed equipment can ignite explosive mixtures, leading to catastrophic accidents. In such scenarios, explosion-proof conductive slip rings emerge as critical components that enable safe power and signal transmission in rotating machinery while eliminating ignition risks.
What is an Explosion-Proof Conductive Slip Ring?
A conductive slip ring, also known as a rotary electrical interface, is an electromechanical device that transmits power, signals, or fluids between a stationary structure and a rotating component (e.g., a rotating drum, agitator, or robot arm). Unlike rigid wiring, which tangles or severs during rotation, slip rings use sliding contacts (e.g., brushes and rings) to maintain uninterrupted transmission.
An explosion-proof conductive slip ring is a specialized variant engineered to operate in explosive atmospheres. It integrates advanced safety technologies to prevent sparks, heat, or electrical arcs from escaping into the surrounding environment, thus avoiding ignition. These slip rings are certified to strict international or national standards (e.g., China’s GB3836) and are indispensable for equipment in oil, chemical, mining, and other high-hazard industries.
How to Choose the Right Explosion-Proof Conductive Slip Ring Model?
Selecting the appropriate explosion-proof slip ring requires careful consideration of multiple technical parameters and application requirements. Here are key factors to guide your decision:
- Explosion-Proof Certification: Ensure the product complies with relevant standards (e.g., China’s GB3836, international IECEx). This certification validates its ability to operate safely in explosive environments.
- Mechanical Dimensions: Match the slip ring’s inner/outer diameter, length, and mounting interface to the host equipment. For large machinery (e.g., industrial mixers), a larger bore diameter (e.g., 220mm) may be required to accommodate thick rotating shafts.
- Channel Count & Current Rating: Determine the number of power/signal channels needed (e.g., 20 channels for multi-sensor or multi-device systems) and the maximum current per channel (e.g., 10A for high-power equipment).
- Environmental Resistance: Evaluate the operating conditions—temperature, humidity, corrosion, and dust levels—and select a slip ring with appropriate protection ratings (e.g., IP65 for dust/water resistance).
- Rotational Speed: Ensure the slip ring supports the required speed range (e.g., up to 300rpm for fast-rotating machinery) without signal loss or overheating.
- Material & Durability: Opt for corrosion-resistant materials (e.g., 304 stainless steel housings) and high-performance contact materials (e.g., third-generation precious metal fiber brushes) to extend service life.
Spotlight: Ingiant Technology’s Large-Bore Explosion-Proof Slip Ring (220mm Inner Diameter, 20 Channels, 10A)
When production environments demand uncompromising safety and performance, Ingiant Technology’s explosion-proof slip rings stand out as a trusted solution. Today, we introduce a flagship model designed for heavy-duty industrial applications: a 220mm inner diameter, 20-channel, 10A explosion-proof slip ring tailored for high-risk equipment.
Safety First: Built to Withstand Explosive Risks
In environments where flammable substances lurk, every electrical component must be a “spark-free zone.” Ingiant’s slip ring addresses this with dual-layered explosion-proof protection:
- Intrinsic Safety Circuit Design: Limits electrical energy to levels too low to ignite explosive mixtures, even under fault conditions.
- Flameproof Steel Housing: A rugged, sealed enclosure that contains any potential sparks or heat, preventing them from reaching the external atmosphere.
- Complemented by an IP65-rated sealing structure, it effectively blocks dust, moisture, and corrosive gases, ensuring reliable operation in harsh conditions. Certified to China’s GB3836 standard, it meets the most stringent safety requirements for explosive atmospheres.
High-Performance Engineering for Demanding Applications
Beyond safety, this slip ring delivers exceptional operational performance:
- Premium Materials: Crafted from 304 stainless steel, it resists corrosion, oxidation, and mechanical stress, ensuring long-term durability.
- Low-Loss Transmission: Equipped with third-generation precious metal fiber brush technology, it minimizes wear, reduces electrical noise, and enables lossless power/signal transmission—even at high speeds.
- Dynamic Stability: Supports rotational speeds up to 300rpm with a dynamic resistance variation ≤5mΩ, ensuring stable current flow (10A per channel) and uninterrupted high-frequency data transmission.
- Modular Flexibility: Features a modular design that allows customization of channels for diverse media (power, signals, fluids), adapting to evolving equipment needs.
Tailored for Harsh Industrial Scenarios

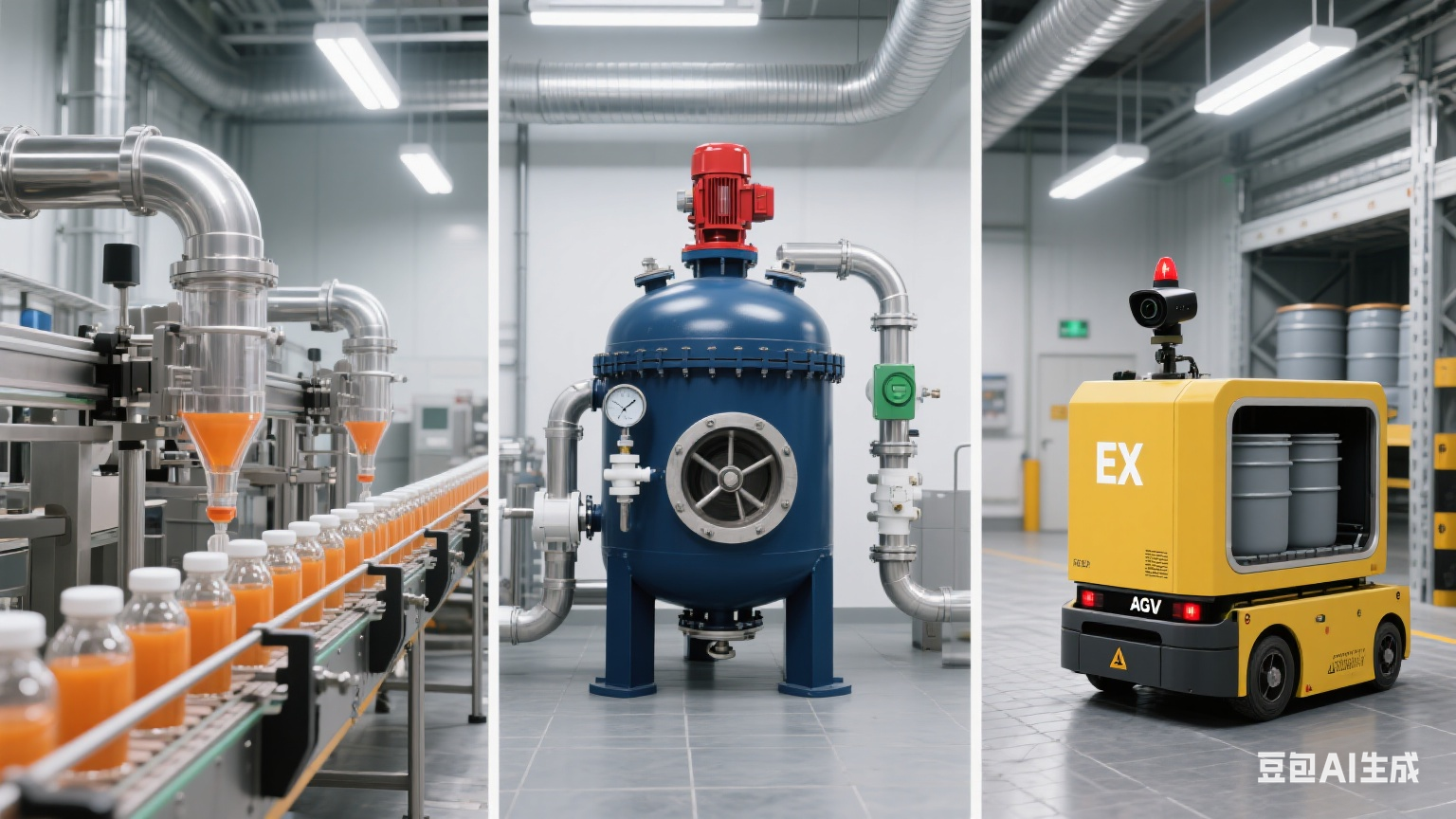

This slip ring thrives in extreme conditions—from high-temperature foundries to humid food processing plants, and from corrosive chemical tanks to dusty mining sites. It is purpose-built for critical equipment, including:
- Filling Machines: Ensures continuous rotation without power interruption, preventing production bottlenecks.
- Reactor Agitators: Provides reliable power for mixing volatile substances in chemical reactors.
- AGV Explosion-Proof Vehicles: Enables safe navigation and data transmission in warehouses or factories with flammable materials.
Conclusion: Safety Meets Excellence in Explosion-Proof Design
In explosive environments, the margin for error is zero. Ingiant Technology’s explosion-proof slip rings redefine safety by integrating cutting-edge technologies—from intrinsic safety circuits to flameproof housings—while delivering unmatched performance. For industries where safety is non-negotiable, this 220mm inner diameter, 20-channel, 10A slip ring is more than a component; it is a safeguard that empowers equipment to operate reliably, even in the face of danger.
