In today's world where many fields such as mechanical manufacturing, automation equipment, and aerospace are constantly pursuing efficiency and precision, through bore conductive slip rings are playing an increasingly important role as core components for realizing power and signal transmission between rotating parts and fixed parts. It is not only the key to the normal operation of equipment, but also an important part of promoting technological innovation in various industries. Next, let us take a deeper look at this precision device.
Ⅰ. What is a through bore conductive slip ring?

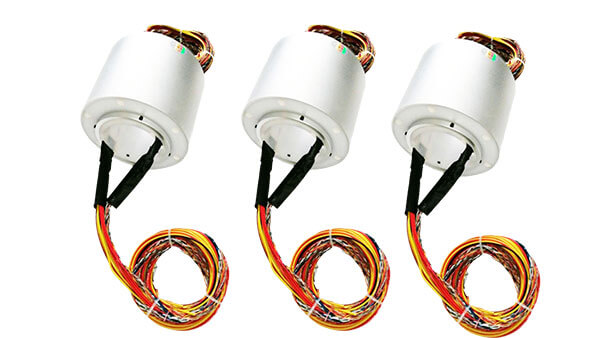

A through bore conductive slip ring is a conductive slip ring with a through hole in the middle. Its unique structural design allows the rotating shaft or other components to pass through the through hole, so as to achieve stable transmission of power, data signals, fluid media, etc. during the rotation of the equipment. It is mainly composed of rotor, stator, brush, housing and other components. The rotor is connected to the equipment component that needs to rotate, and the stator is fixed on the base of the equipment. The electrical connection is formed through the close contact between the brush and the rotor. When the equipment rotates, it can still maintain uninterrupted transmission of power and signals, solving the problem that the traditional connection method cannot achieve continuous transmission in the rotation motion.
Ⅱ. Core technical advantages and specific technical parameters of through bore slip rings
(I) Core technical advantages
Efficient space utilization: The through bore design greatly saves the installation space of the equipment, especially for equipment with limited space and need to integrate multiple functions. For example, in the joints of small drones and industrial robots, through bore conductive slip rings allow the rotating shaft to pass directly through the through hole, avoiding additional space occupation and making the equipment structure more compact.
Multi-function transmission: In addition to being able to stably transmit power and various electrical signals (such as USB, Ethernet, HDMI signals, etc.), some through bore conductive slip rings can also realize the transmission of fluid media such as gas and liquid. In some chemical equipment and food filling machinery, this multi-function transmission feature meets the complex working requirements of the equipment.
High reliability and long life: Using high-quality conductive materials and precision manufacturing processes, through bore conductive slip rings have good wear resistance and low contact resistance. By special treatment of the brush and rotor surface, friction and wear are reduced, thereby extending the service life of the slip ring and reducing the maintenance cost and downtime of the equipment.
(II) Main technical parameters
Rated voltage and current: The rated voltage range is usually from tens of volts to thousands of volts, and the rated current can range from a few amperes to hundreds of amperes depending on the model, which can meet the power transmission needs of various devices.
Signal transmission type and rate: Supports the transmission of multiple signal types, such as analog signals, digital signals, etc. In terms of data transmission rate, some high-performance slip rings can support transmission rates up to 10Gbps or even higher, ensuring fast and stable transmission of high-definition video and large amounts of data.
Working speed: The working speed is generally between tens of revolutions per minute and thousands of revolutions per minute, depending on the design and manufacturing process of the slip ring to meet the rotation speed requirements of different devices.
Working temperature: The common working temperature range is - 40℃ to 80℃, and some special models can adapt to a wider temperature range to meet the use requirements in different environments.
Ⅲ. Application scenarios and equipment types of through bore conductive slip rings
Industrial automation: In automated production lines, CNC machine tools, packaging machinery and other equipment, through bore conductive slip rings realize power and signal transmission between rotating parts and control systems. For example, at the rotating workbench of an automatic packaging machine, the slip ring ensures the accurate transmission of sensor signals and control instructions during the continuous rotation of the equipment, improving production efficiency and packaging accuracy.
Aerospace and defense: Through bore conductive slip rings play an indispensable role in drones, satellite antennas, and radar equipment. During the flight of drones, slip rings ensure power and data transmission between the flight control system and rotating propellers, cameras and other components, ensuring the stable flight of drones and high-definition image return.
Energy and power: In wind turbines, through bore conductive slip rings are used to connect the rotating blade hub with the fixed nacelle to realize power transmission from the blades to the generator, as well as bidirectional transmission of control signals. In addition, in solar tracking systems, slip rings ensure the stable transmission of power and control signals during the rotation of solar panels, improving the utilization efficiency of solar energy.
Medical equipment: In medical equipment such as CT scanners and surgical robots, through bore conductive slip rings enable high-speed data and power transmission between the rotating parts of the equipment and the control unit. For example, when a CT scanner is performing a tomographic scan, the slip ring ensures the stable transmission of the X-ray detector signal, providing doctors with clear and accurate image diagnosis basis.
Ⅳ. How to choose high-quality through bore conductive slip rings?
Clear usage requirements: Determine the basic parameters of the required slip rings according to the working environment of the equipment (such as temperature, humidity, dust conditions), transmission requirements (electric power, signal type, transmission rate), speed requirements, and whether fluid media needs to be transmitted. For example, equipment working in a high-temperature environment needs to choose a high-temperature resistant slip ring; when transmitting high-definition video signals, pay attention to the data transmission rate of the slip ring.
Investigate manufacturing processes and materials: Understand the manufacturing process level of the slip ring manufacturer, such as precision machining technology, assembly process, etc. At the same time, pay attention to the quality of conductive materials (such as precious metal alloys), insulating materials and brush materials. High-quality materials are the basis for ensuring the performance and life of the slip ring. For example, using precious metal alloys as conductive materials can reduce contact resistance and improve transmission stability.
Reference brands and reputation: Give priority to brands with good reputation and rich production experience in the industry. You can learn about the actual use effects, after-sales service, and product stability and reliability of slip rings of different brands by consulting user reviews, industry forum discussions, and consulting peers.
Testing and verification: Before purchasing, try to ask the manufacturer to provide samples for testing. Simulate the actual working environment and operating status of the equipment, and conduct a comprehensive test of the performance of the slip ring to ensure that it can meet the long-term stable operation requirements of the equipment.
Ⅴ. Maintenance and troubleshooting of through bore conductive slip rings
(I) Daily maintenance
Regular inspection: Check the appearance of the slip ring regularly to see if there is wear, looseness, oxidation, etc. Check whether the connection line is firm to ensure that the electrical and mechanical connections between the slip ring and the equipment are normal.
Cleaning and maintenance: Clean the slip ring regularly according to the use environment and frequency. Use a dry, soft brush or clean cloth to remove dust, impurities and oil stains on the surface of the slip ring to prevent these substances from affecting the electrical conductivity and normal operation of the slip ring.
Lubrication treatment: For the rotating parts of the slip ring, add appropriate lubricants regularly according to the manufacturer's requirements to reduce friction and wear and extend the service life of the slip ring. Pay attention to the amount and application method of the lubricant to avoid excessive or uneven application that may cause other problems.
(II) Troubleshooting
Transmission abnormality: If power transmission is unstable or signal interruption occurs, first check whether the connection line has problems such as short circuit and open circuit. Then test the contact resistance and insulation performance of the slip ring to determine whether the conductive parts or brushes inside the slip ring are faulty. For example, excessive contact resistance may be caused by brush wear or oxidation of the conductive surface, and the brushes need to be replaced or cleaned in time.
Abnormal noise or vibration: Abnormal noise or vibration when the slip ring is running may be caused by improper installation, component wear, insufficient lubrication, etc. Check whether the slip ring is firmly installed and whether the parts fit tightly; check the wear of the rotating parts and replace the seriously worn parts in time; check whether the lubricant is sufficient and add or replace the lubricant if necessary.
VI. Industry Trends: Technological Innovation of Through hole Conductive Slip Rings
Miniaturization and Integration: As equipment develops towards miniaturization and intelligence, higher requirements are placed on the size and integration of through hole conductive slip rings. In the future, smaller and highly integrated slip rings will continue to emerge, which can achieve more functional transmission in a limited space and meet the needs of various new types of equipment.
High-speed data transmission and intelligence: Under the background of the rapid development of 5G technology and the Internet of Things, equipment has higher and higher requirements for the speed and stability of data transmission. Through hole conductive slip rings will continue to improve data transmission capabilities, while incorporating intelligent monitoring and diagnostic functions, which can provide real-time feedback on the working status of the slip rings, early warning of potential faults, and facilitate equipment maintenance and management.
Application of new materials and new processes: The research and development and application of new conductive materials, insulating materials and lubricating materials will further improve the performance of through bore conductive slip rings. For example, the use of new materials with self-lubricating properties can reduce friction between components and increase the service life of slip rings; the application of new nanomaterials is expected to enhance the protection performance and transmission stability of slip rings.
VII. Conclusion: Choose a reliable through bore conductive slip ring supplier
The performance of through bore conductive slip rings directly affects the operating efficiency and reliability of the equipment. Ingiant has 11 years of experience in manufacturing through bore slip ring equipment, especially in cable reels, turntables, and automated mechanical equipment, providing very mature customized electrical signal rotation solutions, with a product praise rate of over 98%.
Ⅷ. FAQ
Q1: How many signals can a through hole conductive slip ring transmit at the same time?
A1: The number of signal paths that a through hole conductive slip ring can transmit varies depending on the model, ranging from a few to hundreds. When choosing, you need to determine the appropriate model based on the actual signal transmission requirements of the equipment.
Q2: Is the installation of a through hole conductive slip ring complicated?
A2: The complexity of the installation of the slip ring mainly depends on the structure and installation requirements of the equipment. Generally speaking, the manufacturer will provide detailed installation instructions and technical guidance. If you are not familiar with the installation process, it is recommended to contact the manufacturer's professional technicians for installation or remote guidance.
Q3: What factors affect the service life of a through hole conductive slip ring?
A3: The service life of the slip ring is affected by many factors such as the working environment (such as temperature, humidity, dust), frequency of use, speed, maintenance, etc. A good working environment and regular maintenance can effectively extend the service life of the slip ring.
I hope this article can help you. If you have encountered problems related to through bore slip rings in actual applications, or want to further explore some technical points in the article, please feel free to communicate with us.
