With the booming development of semiconductor chips and photovoltaic industries, the production quality and efficiency of monocrystalline silicon as a core raw material are of vital importance. As the core equipment for pulling monocrystalline silicon, the stable operation of each component of the monocrystalline furnace is related to the quality of the final product. Although the slip ring dedicated to the monocrystalline furnace seems inconspicuous, it undertakes the key task of transmitting power and signals. It is like the "nerve hub" of the monocrystalline furnace and is indispensable to ensure the precise control of the monocrystalline growth process and the stable operation of the equipment.

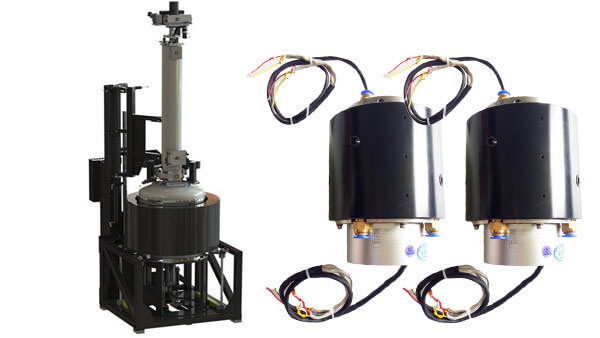

What is a slip ring for a single crystal furnace?
Slip rings for single crystal furnaces are special slip rings designed and manufactured specifically for single crystal furnace equipment. In the process of pulling single crystal silicon, some parts of the single crystal furnace need to rotate continuously, while ensuring the stable transmission of power, control signals and various monitoring data. Slip rings for single crystal furnaces are born for this purpose.
From the structural point of view, it is mainly composed of a rotor, a stator, a conductive ring, a brush and a protective shell. The rotor is connected to the rotating parts of the single crystal furnace and rotates with the equipment; the stator is fixed to the stationary part of the equipment. The conductive rings are usually made of high-purity conductive materials and are evenly distributed on the rotor. The brushes are in close contact with the conductive rings to form a stable electrical connection. When the single crystal furnace is running, even if the rotor continues to rotate at high speed, the brushes can maintain good contact with the conductive rings, thereby realizing uninterrupted transmission of power and signals from the stationary end to the rotating end, ensuring that the heating system, pulling system, temperature control system and other parts of the single crystal furnace work together.
Compared with ordinary slip rings, slip rings for single crystal furnaces are more targeted. It needs to adapt to the special environment such as high temperature, high vacuum, and strong electromagnetic interference inside the single crystal furnace, and has higher standards in material selection, structural design, and manufacturing process to ensure reliability and stability under harsh conditions.
Core technical advantages and specific technical parameters of slip rings for single crystal furnaces
1. Core technical advantages
a. High temperature resistance and high vacuum adaptability: During the crystal pulling process, the internal temperature of the single crystal furnace can reach above 1400℃, and a high vacuum environment must be maintained. The slip rings for single crystal furnaces are made of special materials with high temperature resistance and low outgassing rate, such as ceramic insulating materials, high temperature resistant alloy conductive rings, etc., to ensure that the performance will not be affected by material deformation and volatilization under high temperature and high vacuum environment, and to ensure the stable transmission of power and signals.
b. Strong anti-electromagnetic interference ability: The electromagnetic environment in the single crystal furnace is complex, and the heating system, magnetic field control device, etc. will generate strong electromagnetic interference. The special slip rings are designed with special shielding structures, such as double-layer metal shielding covers, and use insulating materials and signal transmission cables with excellent anti-interference performance to effectively suppress external electromagnetic interference, ensure that the signals transmitted by temperature sensors, position sensors, etc. are accurate, and provide reliable data support for the precise control of the single crystal growth process.
c. High-precision signal transmission: Single crystal growth requires extremely high control accuracy of parameters such as temperature and pulling speed. Even slight signal errors may cause crystal defects. The slip rings for single crystal furnaces rely on precise manufacturing technology to ensure that the contact resistance between the brush and the conductive ring is stable and the signal transmission error is extremely small. They can meet the needs of single crystal furnaces for high-precision transmission of temperature, position and other signals, and help produce high-quality single crystal silicon.
d. Long life and high reliability: Considering the characteristics of continuous production of single crystal furnaces, the special slip rings are designed and manufactured with full consideration of durability. By optimizing the contact pressure and friction coefficient between the brush and the conductive ring, and using materials with good wear resistance, the wear of components is reduced; at the same time, the structural strength is strengthened, and the ability to resist vibration and impact is improved, so that it can operate stably under long-term and high-load working conditions, and the frequency of equipment downtime caused by slip ring failure is reduced.
Specific technical parameters
2. Electrical performance parameters
a. Rated voltage: The common range is 220VAC - 660VAC, which can be customized according to the power supply requirements of different systems of the single crystal furnace. For example, the heating system may require a higher voltage, while the control system voltage is relatively low.
b. Rated current: The current of each channel ranges from 5A to 200A, which can meet the current transmission requirements of different power components such as the heating wire and motor of the single crystal furnace.
c. Insulation resistance: Generally required to be ≥1000MΩ (under 500VDC test conditions). High insulation resistance can effectively prevent leakage and signal crosstalk, and ensure the safety of equipment and personnel.
d. Signal transmission accuracy: For analog signals such as temperature and position, the transmission error is usually controlled within ±0.1% to ensure the accuracy of parameter monitoring during the single crystal growth process.
3. Mechanical performance parameters
a. Number of channels: According to the actual needs of the single crystal furnace, 6-32 channels are usually provided, which can simultaneously transmit power lines and multiple control and monitoring signal lines.
b. Maximum speed: The maximum speed can reach 500rpm, which can meet the working speed requirements of the rotating parts of the single crystal furnace.
c. Working temperature range: The working temperature is generally - 20℃ - +150℃. Some specially designed slip rings can withstand higher temperatures to adapt to the high temperature environment inside the single crystal furnace and the surrounding temperature changes.
d. Protection level: The protection level reaches IP54 or above, with dust and splash-proof capabilities to prevent dust and coolant in the furnace from entering the slip ring and affecting performance.
Application scenarios and equipment types of slip rings for single crystal furnaces
Semiconductor chip manufacturing
In the field of semiconductor chip manufacturing, single crystal silicon is the basic material for manufacturing chips, and its purity and crystal structure integrity are almost stringent. The direct-pull single crystal furnace is the main equipment for producing semiconductor-grade single crystal silicon, and the slip ring for single crystal furnace plays a key role in it. It provides stable power for the pulling system of the single crystal furnace to ensure that the silicon rods are pulled out at a precise speed; at the same time, it transmits temperature sensor signals, allowing operators to monitor and accurately control the temperature in the furnace in real time to ensure the stability of the single crystal silicon growth process, thereby producing high-quality single crystal silicon ingots that meet the requirements of chip manufacturing.
Photovoltaic industry
In the photovoltaic industry, polycrystalline silicon ingot furnaces and direct-pull single crystal furnaces are used to produce photovoltaic-grade single crystal silicon. With the continuous improvement of the photovoltaic industry's requirements for battery conversion efficiency, higher standards have been put forward for the quality and production efficiency of single crystal silicon. In photovoltaic single crystal furnace equipment, the slip ring for single crystal furnace ensures the stable power supply of the heating system and maintains the uniform temperature in the furnace; it transmits the control signal of the rotating parts to realize the automatic and precise control of the silicon rod growth process, which helps to improve the output and quality of single crystal silicon, reduce production costs, and promote the development of the photovoltaic industry.
Scientific research and experimental field
In the material science laboratories of universities and scientific research institutions, small single crystal furnaces are often used for the research and development of new semiconductor materials, superconducting materials, etc. Although these experimental single crystal furnaces are small in scale, they have extremely high requirements for the accuracy and stability of the equipment. The slip ring for single crystal furnace provides stable and reliable power and signal transmission for the experimental single crystal furnace, ensuring the precise control of various parameters and accurate data collection during the experiment, and providing strong support for scientific researchers to explore new materials and new processes.
How to choose a high-quality slip ring for a single crystal furnace?
Clear application requirements
a. Determine electrical parameters: According to the power of the single crystal furnace, the voltage and current requirements of each system, and the type and number of signals to be transmitted, accurately determine the rated voltage, rated current and number of channels of the slip ring. For example, if the heating system of a large single crystal furnace has a large power, it is necessary to select a slip ring with a higher rated current; if the equipment integrates multiple sensors, it is necessary to ensure that the number of slip ring channels meets the signal transmission requirements.
b. Consider the working environment: Fully understand the working environment characteristics of the single crystal furnace, such as temperature, vacuum, electromagnetic interference intensity, etc. For high temperature environments, it is necessary to select slip rings with good high temperature resistance; in strong electromagnetic interference environments, it is necessary to select products with strong anti-interference ability to ensure that the slip ring operates stably in the specific environment of the single crystal furnace.
c. Combined with equipment accuracy requirements: Single crystal furnaces for different purposes have different control accuracy requirements. The accuracy requirements of single crystal furnaces for semiconductor chip manufacturing are much higher than those of ordinary photovoltaic single crystal furnaces. According to the equipment's requirements for the control accuracy of parameters such as temperature and position, select slip rings with matching signal transmission accuracy to avoid affecting the quality of single crystal silicon products due to insufficient slip ring accuracy.
Inspect product quality
a. Check materials and processes: High-quality single crystal furnace slip rings usually use high-quality materials, such as high-purity copper alloys or precious metal alloys to make conductive rings to reduce resistance and improve conductivity; insulating materials are made of high-temperature resistant, low-gassing ceramics or special engineering plastics. In terms of manufacturing process, pay attention to the surface finish of the conductive ring and the contact accuracy between the brush and the conductive ring. Precision processing technology can effectively reduce contact resistance and wear, and improve the performance and service life of the slip ring.
b. Evaluate brand and reputation: Give priority to suppliers with good brand reputation and rich production experience in the field of single crystal furnace slip rings. Well-known brands often invest more resources in R&D, production and quality control, and their products have been tested in the market for a long time and have higher reliability. You can understand the reputation of different brands by consulting industry information, consulting peers, and checking user reviews.
c. Verify certification and test reports: Make sure that the selected slip ring has relevant quality certifications and test reports, such as ISO quality management system certification, CE certification, etc., as well as electrical performance test reports and high temperature and high vacuum performance test reports issued by third-party organizations. These certifications and reports are strong proof that the product quality meets the standards and can help users determine whether the product is reliable.
Comprehensive consideration of price and service
a. Reasonable budget planning: When choosing a slip ring, price is an important consideration, but it cannot be guided by price alone. Too low a price may mean that there are hidden dangers in product quality, and too high a price may not necessarily bring corresponding performance improvements. Under the premise of ensuring that the product quality and performance meet the needs, combined with your own budget, compare the products of different suppliers, and choose a slip ring with high cost performance.
b. Pay attention to after-sales service: High-quality after-sales service can solve the worries of users during use. Choose a supplier who can provide timely technical support, product repair and replacement services. When a slip ring fails, if the supplier can respond quickly and arrange professional personnel to repair or replace it, it can greatly shorten the equipment downtime and reduce production losses.
Maintenance and troubleshooting of slip rings for single crystal furnaces
Daily maintenance points
a. Cleaning and maintenance: Clean the slip rings regularly, wipe the surface of the slip rings with a clean dust-free cloth, and remove impurities such as dust and metal debris. For the contact area between the brush and the conductive ring, use a special cleaner to carefully clean it to keep the contact surface smooth, reduce the contact resistance, and prevent the accumulation of impurities from causing unstable signal transmission or increased wear of components.
b. Check the connection parts: Check the connection cables between the slip ring and the single crystal furnace equipment frequently to ensure that the connection is firm and there is no looseness, damage, or oxidation. Loose connections will increase contact resistance, cause heating or even sparks; damaged cables may cause signal transmission interruption or leakage. If problems are found, tighten or replace the cables in time.
c. Monitor the operating status: During the operation of the single crystal furnace, pay close attention to the operating status of the slip ring, and determine whether the slip ring is working properly by monitoring parameters such as temperature, current, and signal transmission stability. If the temperature of the slip ring is abnormally high, the current fluctuates greatly, or there is an error in signal transmission, the machine should be stopped for inspection in time to find out the cause of the fault.
Common faults and troubleshooting methods
a. Abnormal power transmission: If the equipment power supply is unstable, the voltage fluctuates or there is no power, first check whether the cable connecting the slip ring is normal, including whether the cable is damaged and whether the joint is loose. If there is no problem with the cable, check the contact between the brush and the conductive ring to see if there is wear, oxidation, or carbon deposition. It can be repaired by cleaning the brush and conductive ring, adjusting the brush pressure, and replacing the severely worn brush.
b. Signal transmission failure: When signal loss, interference, or data transmission error occurs, check whether the signal cable connection is firm and whether it is subject to electromagnetic interference. For signal transmission with shielding requirements, ensure that the shielding layer is well grounded. At the same time, check whether the internal signal transmission circuit of the slip ring, such as the isolation module, filter circuit, etc., is damaged. If damaged, replace it in time.
c. Slip ring overheating: Overheating during the operation of the slip ring may be caused by current overload, excessive contact resistance, or poor heat dissipation. Check whether the operating current of the equipment exceeds the rated current of the slip ring. If the current is normal, check the contact between the brush and the conductive ring to see if there is poor contact or local wear. In addition, check whether the slip ring heat sink is normal, such as whether the cooling fan is running and whether the heat sink is dusty. Clean the heat sink in time and repair the faulty heat sink.
d. Abnormal noise: Abnormal noise caused by the operation of the slip ring may be caused by loose mechanical parts, wear or insufficient lubrication. Check whether the slip ring fixing screws are loose, whether the bearings and other rotating parts are worn, and whether the lubrication is good. According to different reasons, take measures such as tightening screws, replacing worn parts, and adding lubricants to solve them.
Technological innovation of slip rings for single crystal furnaces
Intelligent upgrade
With the development of industrial automation and Internet of Things technology, slip rings for single crystal furnaces will evolve towards intelligence. In the future, slip rings may integrate sensors and smart chips to monitor their own operating status in real time, such as temperature, wear degree, contact resistance and other parameters, and upload data to the equipment management system. Through data analysis, fault warning can be achieved, maintenance can be arranged in advance, downtime can be reduced, and the intelligent management level of single crystal furnace equipment can be improved.
Application of higher performance materials
In order to adapt to the ever-increasing performance requirements of single crystal furnaces, new materials will be widely used in slip ring manufacturing. For example, new alloy materials with higher conductivity and high temperature resistance can further reduce resistance and improve current transmission capacity; new insulation materials have lower gas outflow rate and better mechanical strength while ensuring high insulation performance, which improves the reliability and service life of slip rings in high temperature and high vacuum environments.
Miniaturization and integration
As single crystal furnace equipment develops towards miniaturization and integration, new requirements are also put forward for the volume and integration of slip rings. In the future, the slip rings dedicated to single crystal furnaces will be miniaturized while ensuring performance through optimized structural design; at the same time, more functional modules will be integrated into the slip rings, such as signal amplification, filtering, A/D conversion, etc., to reduce external connection cables and equipment, improve system integration and reliability, and reduce equipment installation and maintenance costs.
Conclusion: Choose a reliable supplier of slip rings for single crystal furnaces
Although the slip rings for single crystal furnaces are small, they play an irreplaceable and key role in the production process of single crystal silicon, and their performance directly affects the quality and production efficiency of single crystal silicon. From basic concepts, core technologies to application scenarios, key points for purchase, and maintenance methods and industry trends, we have a comprehensive understanding of slip rings for single crystal furnaces.
In practical applications, choosing a reliable slip ring supplier is the key to ensuring the stable operation of single crystal furnaces. Reliable suppliers can not only provide high-quality, demand-compliant products, but also provide strong guarantees in terms of technical support and after-sales service. When choosing, it is necessary to comprehensively consider factors such as product quality, technical strength, and service level, and make correct decisions through full research and comparison to lay a solid foundation for the development of the semiconductor and photovoltaic industries.
Frequently Asked Questions
Q1:Can slip rings for single crystal furnaces be used for other equipment?
A1:Slip rings for single crystal furnaces are designed for the special working environment and needs of single crystal furnaces. Although some of their performance is also applicable to other equipment, it is not recommended to be used directly in other equipment due to the large differences in working conditions, precision requirements, and transmission requirements of different equipment. If you want to use it, you need to carefully evaluate whether the electrical parameters, mechanical properties and environmental adaptability of the slip ring meet the requirements of the new equipment.
Q2:How to judge whether the slip ring dedicated to the single crystal furnace is faulty?
A2:It can be judged by the operating status of the equipment, such as unstable power supply, abnormal signal transmission, excessive slip ring temperature, abnormal noise, etc. In addition, the electrical parameters of the slip ring, such as resistance, insulation performance, etc., can be measured with the help of professional testing instruments. Compared with the normal parameters, if there is a significant deviation, it is likely that the slip ring has failed.
Q3:What factors affect the service life of the slip ring dedicated to the single crystal furnace?
A3:The service life is affected by factors such as the working environment (temperature, vacuum, electromagnetic interference), frequency of use, load size, and maintenance. High temperature, high vacuum, and strong electromagnetic interference environment will accelerate the aging of slip ring components; frequent use and excessive load will increase component wear; regular cleaning, lubrication, and inspection and other maintenance measures will help extend the service life of the slip ring.
Q4:Does replacing the slip ring dedicated to the single crystal furnace require professional operation?
A4:Since the installation of slip rings for single crystal furnaces involves electrical connection and mechanical fixation, and the installation accuracy must be guaranteed to ensure performance, and the single crystal furnace equipment is relatively precise, any carelessness during the replacement process may affect the overall operation of the equipment. Therefore, it is recommended that professionals operate the replacement to ensure that the replacement work is completed safely and accurately.
Q5:What is the reason for the large price difference of slip rings for single crystal furnaces of different brands?
A5:The price difference mainly comes from material cost, R&D investment, manufacturing process, brand influence and after-sales service. Products that use high-quality materials, invest a lot of R&D resources, have advanced manufacturing processes, high brand awareness and perfect after-sales service have relatively high costs and high prices; while some low-cost products may have deficiencies in these aspects and are relatively low in price. When choosing, you should consider product performance and price comprehensively, rather than simply focusing on price.
I hope this article can help you. If you have encountered problems related to cable reel slip rings in actual applications, or want to further explore some technical points in the article, please feel free to communicate with us.
