In modern automated packaging production lines, efficiency, precision, and continuity are the gold standard for advancement. From product wrapping and precise robotic palletizing to precision assembly on rotary tables and intelligent identification in high-speed sorting systems, every process requires unrestricted movement. However, this presents a key challenge: how to stably transmit power, control signals, and high-speed data between the 360° rotating components and the stationary machine structure?
Conductive slip rings are the “silent hub” and “energy bridge” that solve this problem. As a precision electromechanical component, they perfectly achieve electrical connection between stationary and rotating structures, ensuring the seamless flow of energy and information. They are the core foundation for the efficient and continuous operation of the entire automated packaging line.
1. Operating Principle and Core Value of Conductive Slip Rings
Simply put, a conductive slip ring consists of two parts: a rotor connected to the rotating component and a stator connected to the stationary structure. Its core principle is to utilize precious metal alloy brushes or fiber brushes in sliding contact with a precision ring track to maintain continuous electrical conduction during continuous rotation.
In the field of automated packaging, its core value lies in:
- Freedom from motion constraints: Enables equipment to perform unlimited, continuous rotation for multiple revolutions without worrying about cable tangles or twisting.
- Ensuring signal integrity: Stable transmission of servo motor power, sensor signals, vision camera data, pneumatic control signals, and more ensures precise control.
- Improving equipment reliability: Avoiding downtime caused by cable breaks, significantly extending equipment life, and reducing maintenance costs.
2. Application Scenarios of Slip Rings in Key Packaging Equipment
1. Wrapping Machines: The Guardian of Infinite Rotation
Wrapping machines need to precisely and evenly wrap film around palletized goods. Their core movement is the continuous rotation of the turntable and the vertical movement of the film carriage. Slip rings are typically installed at the bottom of the rotating turntable, responsible for providing power and control signals to photoelectric sensors (for detecting load height) on the turntable, servo drive systems, and possible top press arms. Without slip rings, the rotating plate can only swing within a limited range, making efficient and precise wrapping impossible.

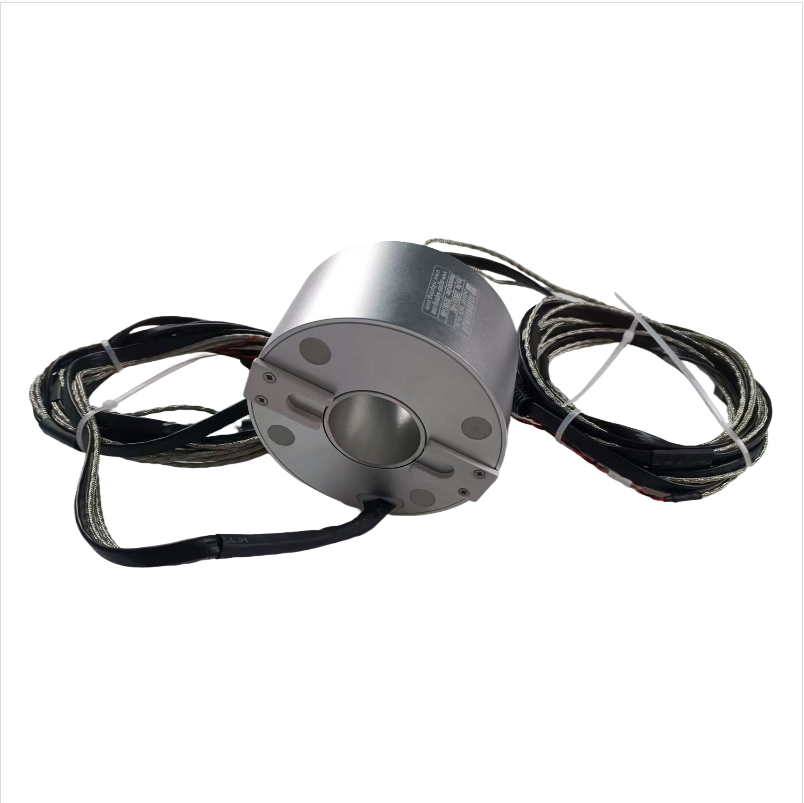

Currently, the most commonly used slip rings by our customers are the standard 25mm inner diameter and 38mm inner diameter through-hole slip rings. We also have customers using packaging machinery with standard inner diameters of 60mm, 70mm, or 80mm.
2. Robotic Palletizers: Dancing Energy Joints

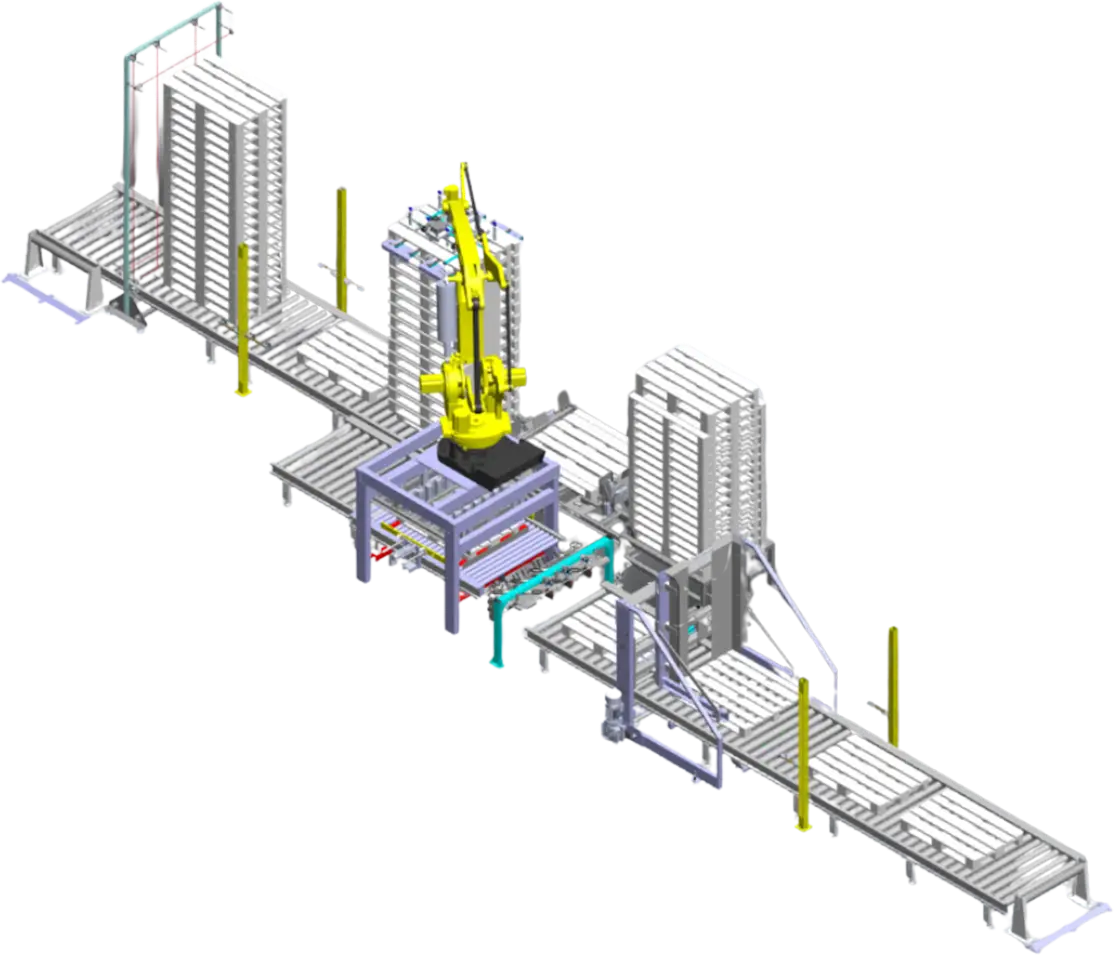

Articulated robotic palletizers are the stars of packaging lines. The agile movement of their “arms” relies on precise rotation at each joint. Compact, multi-channel slip rings are often integrated within the robot’s base or major joints. They power the joint’s servo motors while also transmitting gripping signals from the end-of-line gripper (such as a vacuum cup or robotic finger), data from pressure sensors, and data from any integrated vision positioning camera. The performance of the slip rings directly determines the smoothness of the robot’s movements, gripping accuracy, and overall operational cadence.
The DHK through-hole series conductive slip rings and Ethernet series conductive slip rings developed by Ingiant are widely used in various robotic arms.
3. Rotary Assembly Table/Multi-Station Turntable: A Command Center for Efficient Collaboration
In processes such as filling, capping, labeling, and cartoning, the multi-station rotary assembly table is key to improving production efficiency. The table rotates periodically, with each station performing a specific operation while stationary. A conductive slip ring mounted at the center of the turntable acts as a “central command hub,” providing power and signals to pneumatic solenoid valves (controlling cylinders), electric screwdrivers, sensors, and indicator lights at multiple stations. This ensures that actuators at all stations are always ready during the rotation process and maintains real-time communication with the master control system, enabling precise synchronization.
Rotary assembly tables are particularly suitable for slip rings requiring high precision (fiber optics, high-speed electrical transmission), dynamic conditions (requiring stable transmission during rotation), and complex structures (multiple channels, large dimensions). Their core value lies in improving assembly efficiency and accuracy through a controlled rotational environment, while reducing subsequent commissioning costs.
4. Automated Sorting Systems: Rotating Gateways to the Data Flood
The core of a high-speed automated sorting system, such as a cross-belt sorter, is a high-speed rotating loop on which hundreds of carts carrying packages are distributed. Each cart is an independent intelligent unit, potentially requiring power to drive its belt motor and communication with a central control system to release packages at the precise moment. Slip rings act as a “data gateway” here. Standing at the center of the sorter’s massive rotating platform, they establish a power and high-speed data channel between the stationary control console and all the moving carts, ensuring the unimpeded flow of massive amounts of sorting information and achieving an astonishingly high sorting rate per minute.
The selection of slip rings for automatic sorting systems needs to be combined with the transmission type (electrical/optical/fluid), rotation speed, number of channels, and environmental requirements. Usually, micro high-speed conductive slip rings, optical fiber slip rings, pneumatic fluid slip rings, and hybrid integrated slip rings are selected.
3. Selection and Maintenance: Ensuring a Non-Stop Production Line
Choosing the right slip ring for automated packaging equipment is crucial. Consider the number of channels (power, signal, and gas/liquid), current and voltage levels, rotational speed, IP rating, and signal interference immunity (such as shielding for Ethernet and CAN bus signals).
High-quality slip rings offer an extremely long service life and minimal maintenance. Regularly checking brush wear and maintaining internal cleanliness (especially in the dusty environment of the packaging workshop) are key to ensuring long-term, stable operation.
Conclusion
Although hidden within equipment and rarely visible, slip rings are an indispensable enabling technology for modern automated packaging production lines. They form the physical foundation for unlimited rotation, intelligent control, and efficient collaboration. From winding and palletizing to assembly and sorting, slip rings act like a silent partner, seamlessly collaborating with automated equipment to embody the efficiency and precision of modern industrial packaging and continuously drive innovation and development in intelligent manufacturing.
