1. Overview of rotor flange slip rings
In the fields of machinery manufacturing, energy production, petrochemicals, etc., the transmission of power and signals between the rotating parts and the fixed parts of the equipment is a key link to ensure the normal operation of the equipment. As the core component of this transmission process, the rotor flange slip ring is like the "nerve hub" of the equipment, accurately transmitting power and instructions. Whether it is the continuous power generation of wind turbines or the high-intensity operation of mining machinery, once the slip ring fails, it may cause the entire equipment to shut down or even cause a safety accident. Therefore, in-depth understanding of the performance and application of rotor flange slip rings is of great significance to improving equipment reliability and reducing maintenance costs.
2. What is a rotor flange slip ring?
The rotor flange slip ring is an electrical connection device designed for the rotor part of mechanical equipment, which is firmly connected to the rotating shaft through a flange structure. Its basic structure mainly includes conductive rings, brushes, insulating materials, flanges and protective shells. The conductive ring is usually made of metal materials with high conductivity, arranged in the circumferential direction, responsible for the transmission of current and signals; the brush is in close contact with the conductive ring, and maintains electrical connection through sliding friction during the rotation of the equipment; the flange plate, as a mounting carrier, not only provides stable mechanical support, but also can withstand large axial and radial loads, ensuring the stability of the slip ring under high-speed rotation.
Compared with ordinary slip rings, the biggest feature of the rotor flange slip ring is its flange mounting structure. This design makes it suitable for heavy machinery and equipment that require high load and high stability, and can operate reliably under complex working conditions.
3. Core technology analysis and technical parameters of rotor flange slip rings
3.1 Core technology analysis
① Precision contact technology: The contact performance between the brush and the conductive ring is the technical core of the slip ring. High-quality rotor flange slip rings usually use precious metal alloy brushes, with high-precision polished conductive ring surfaces, to minimize contact resistance, reduce signal transmission loss and heating, and ensure stable transmission of power and signals.
② High protection structure design: In response to dust, water vapor, corrosive gas and other problems in industrial environments, rotor flange slip rings achieve high protection levels (such as IP65, IP67) through sealed bearings, protective shells and special insulating materials, effectively resisting the erosion of internal components by the external environment and extending service life.
③ Dynamic balance optimization: In high-speed rotating equipment, the dynamic balance of the slip ring is crucial. Through precise processing technology and mass balance detection, it is ensured that the slip ring will not generate vibration and noise when running at high speed, improving the stability and safety of equipment operation.
3.2 Technical Parameters
① Rated current and voltage: According to the power demand of the equipment, the rated current range of the rotor flange slip ring ranges from a few amperes to hundreds of amperes, and the rated voltage can cover the low voltage to high voltage range (such as DC 24V - AC 10kV).
② Speed range: Generally, standard slip rings can meet the speed requirements of thousands of revolutions per minute, while special models for high-speed rotating equipment (such as turbine generators) can reach a speed limit of tens of thousands of revolutions per minute.
③ Number of channels: It can be customized according to actual application requirements, ranging from a few channels to hundreds of channels to meet various types of transmission such as power, control signals, and data signals.
④ Operating temperature: The operating temperature range of conventional models is -20℃ to 80℃, and special customized products can adapt to extreme temperature environments (such as -50℃ to 150℃).

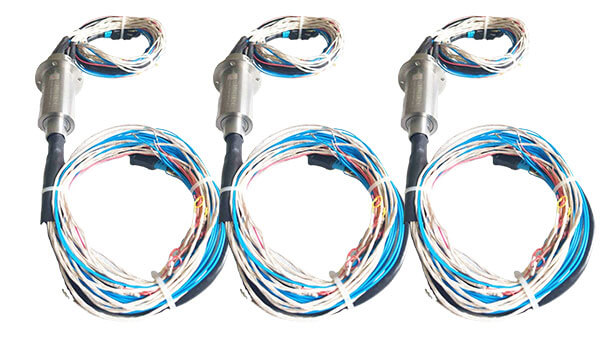

3.3 ingiant flange slip ring main features
· Designed for underwater and waterproof operations.
· Industrial-grade products, stator flange, IP65, P68 optional
· Gold-gold contact, imported seals and military-grade electroplating treatment
· Multi-point contact points, waterproof glands, cables, etc.
· Customizable rotor flange slip rings, automatic servo system slip rings, encoder special slip rings, etc.
4. Application scenarios and equipment types of rotor flange slip rings
4.1 Electric energy field
In the wind power industry, the rotor flange slip ring is installed between the main shaft and the nacelle of the wind turbine to transmit the electric energy generated by the rotation of the impeller to the power grid, and at the same time feed back the monitoring signals such as wind speed and rotation speed to the control system. In thermal power generation and hydropower generation equipment, slip rings are also used to connect the generator rotor with the external circuit to ensure stable power output.
4.2 Industrial manufacturing field
●Heavy machinery: mining crushers, large ball mills, industrial mixers and other equipment, under high load and high speed working conditions, rotor flange slip rings are required to stably transmit power and control signals to ensure continuous operation of the equipment.
●Automated production line: In automated production lines such as automobile manufacturing and electronic assembly, slip rings provide power and data transmission for rotating workbenches, robotic arms and other components to achieve precise control and efficient operation of equipment.
4.3 Petrochemical field
The rotary drilling equipment of oil drilling platforms and the stirring device of chemical reactors are in a harsh environment of high temperature, high pressure and strong corrosion for a long time. The rotor flange slip ring ensures the safe and reliable operation of the equipment under complex working conditions due to its high protection performance and stable transmission capability.
5. How to choose high quality rotor flange slip rings?
5.1 Clarify application requirements
Before purchasing, you need to understand the working parameters of the equipment in detail, including rated power, speed, working environment, signal transmission type, etc. For example, in a dusty mining environment, a slip ring with a high protection level should be selected; for equipment that needs to transmit high-frequency signals, attention should be paid to the signal shielding and anti-interference capabilities of the slip ring.
5.2 Investigate brand and reputation
Give priority to brands with a good reputation and rich experience in the industry. You can understand the brand's product quality and after-sales service level by checking the company's official website cases, customer reviews, industry exhibitions, etc. Well-known brands are often more secure in R&D investment, production processes and quality control.
5.3 Verify product qualifications
Require suppliers to provide relevant certification documents, such as ISO 9001 quality management system certification, CE certification, RoHS environmental certification, etc. These certifications are important bases for products to comply with international and domestic standards, and can effectively guarantee product quality and safety.
5.4 Compare supplier services
Choose a supplier that can provide customized services and customize the slip ring size, number of channels, protection level, etc. according to the special needs of the equipment. At the same time, comprehensive after-sales service (such as technical support, maintenance, emergency response, etc.) is also an important consideration when purchasing.
6. Maintenance and troubleshooting of rotor flange slip rings
6.1 Daily maintenance
◆Cleaning and maintenance: Regularly clean the dust, oil and metal debris on the surface of the slip ring to prevent impurities from entering between the brush and the conductive ring and affecting the contact performance. Use dust-free cloth and special cleaning agent for wiping.
◆Lubrication check: For slip rings with mechanical bearings, regularly check the state of the grease, replenish or replace it in time to ensure the smooth operation of the bearing.
◆Tightening check: Check whether the mounting bolts of the flange are loose, ensure that the connection between the slip ring and the equipment is stable, and prevent poor contact caused by vibration.
6.2 Troubleshooting
◆Abnormal signal transmission: If the signal is interrupted or unstable, first check the wear of the brush, and replace it in time if it is excessively worn; secondly, check whether there are scratches or oxidation on the surface of the conductive ring, and polish it if necessary.
◆Abnormal heating: The heating of the slip ring may be caused by current overload, excessive contact resistance or poor heat dissipation. Check whether the actual working current of the equipment exceeds the rated current of the slip ring, and clean the heat dissipation channel to ensure good ventilation and heat dissipation.
◆Excessive noise: Noise is usually caused by bearing wear, unbalanced installation or loose parts. Check the operating status of the bearing, readjust the installation position of the slip ring, and tighten the loose parts.
7. Future Trends: Technological Innovation of Rotor Flange Slip Rings
7.1 Intelligence and Integration
With the development of Industry 4.0 and Internet of Things technology, the future rotor flange slip rings will integrate sensors and monitoring modules to achieve real-time monitoring of operating conditions (such as temperature, vibration, and wear), and transmit data to the control system through wireless communication technology, which is convenient for early warning and preventive maintenance.
7.2 Application of New Materials
The research and development and application of new conductive materials and wear-resistant materials will further improve the performance of slip rings. For example, the use of graphene composite materials can improve conductivity and wear resistance, and the use of new polymer insulation materials can enhance protection performance and high temperature resistance.
7.3 Miniaturization and Lightweight
In some application scenarios with strict requirements on space and weight (such as aerospace and high-end equipment), rotor flange slip rings will develop in the direction of miniaturization and lightweight. By optimizing structural design and using lightweight materials, the volume and weight can be reduced without reducing performance.
8. Conclusion: Choose a reliable rotor flange slip ring supplier
As a key component in industrial equipment, the performance of the rotor flange slip ring is directly related to the operating efficiency and reliability of the equipment. When choosing a supplier, we should not only pay attention to the quality and technical parameters of the product, but also pay attention to the supplier's service capabilities and technical support level. A reliable supplier can provide a one-stop solution from product selection, custom design to installation and commissioning, and after-sales maintenance, so as to relieve users of worries.
9. FAQ
Q1: What is the service life of the rotor flange slip ring?
A: The service life of the slip ring is affected by many factors such as the working environment, frequency of use, and maintenance. Under normal working conditions and regular maintenance, it can generally be used for 5-10 years; if the working environment is harsh or maintenance is improper, the service life may be shortened.
Q2: Can the slip ring be customized according to special needs?
A: Most professional suppliers provide customization services, and can design and produce exclusive rotor flange slip rings according to the user's special needs such as electrical parameters, mechanical dimensions, and protection level.
Q3: Can the slip ring be repaired by itself after a failure?
A: For simple faults (such as brush replacement, surface cleaning), users can refer to the product manual to handle them by themselves; for complex faults (such as internal circuit damage, bearing replacement), it is recommended to contact professional technicians or suppliers for repairs to avoid secondary damage.
Q4: How to judge whether the protection level of the slip ring meets the use requirements?
A: Select a slip ring with the corresponding protection level according to the working environment of the equipment. For example, IP54 level can be selected for indoor dry environment; IP65 or above level should be selected for outdoor open-air environment or occasions with waterproof and dustproof requirements; in corrosive environment, the anti-corrosion performance of the material should also be considered.
I hope this article can help you. If you have encountered problems related to sealed underwater slip rings in actual applications, or want to further explore some technical points in the article, please feel free to communicate with us.
