Ⅰ.Overview of Micro Capsule Slip Rings
As modern industry and electronic equipment continue to pursue miniaturization and precision, the importance of micro capsule slip rings has become increasingly prominent. Whether it is the flexible operation of smart wearable devices or the precise operation of precision medical instruments, it is inseparable from its ability to stably transmit power and signals. This seemingly small component is actually the core that ensures that the equipment can achieve 360-degree unlimited continuous rotation and reliable transmission of current and data. It can be called the "invisible hub" of equipment operation.
Ⅱ.What is a micro capsule conductive slip ring?

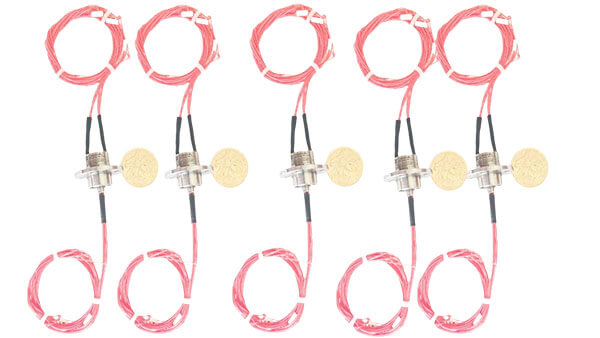

Micro capsule conductive slip ring, from the appearance, looks like a small hat, and its compact structure design is designed for application scenarios with limited space. It is mainly composed of brushes, conductive rings, insulating materials, precision bearings and other key components. The working principle is based on the sliding contact between the brush and the conductive ring. When the rotating part of the equipment rotates, the brush slides on the surface of the conductive ring, thereby realizing the uninterrupted transmission of power and signals between the fixed part and the rotating part. Compared with traditional slip rings, the biggest feature of micro capsule conductive slip rings is its miniaturized size and lightweight design, which can adapt to more demanding installation space requirements and has a higher degree of integration.
Ⅲ.Core technical advantages and specific technical parameters of micro capsule conductive slip rings
Product advantages
a. High precision and high reliability: The use of advanced manufacturing processes and precision processing technology ensures that the contact resistance between the brush and the conductive ring is small and stable, the signal transmission loss is low, and it can maintain stable performance during long-term continuous operation and reduce the probability of equipment failure.
b. Low noise and long life: By optimizing the structural design and selecting high-quality wear-resistant materials, the friction and noise during operation are effectively reduced, while extending the service life of the slip ring, reducing maintenance costs and downtime.
c. High protection performance: Some micro capsule conductive slip rings have excellent protection levels and can adapt to harsh working environments, such as dustproof, waterproof, and corrosion-resistant, meeting the application requirements of special fields such as industrial automation and aerospace.
d. Flexible customization: According to different application requirements, the number of circuit channels, signal type, speed range and other parameters can be flexibly customized to meet a variety of usage scenarios.
Technical parameters
a. Size specifications: The outer diameter is usually between a few millimeters and more than ten millimeters, and the height is only a few millimeters, which can easily fit the internal space of small equipment.
b. Working speed: Generally, it can reach thousands of revolutions per minute, and some high-performance products can even meet higher speed requirements.
c. Electrical parameters: The transmittable voltage ranges from a few volts to hundreds of volts, and the current ranges from milliamperes to several amperes, supporting various types of signal transmission, such as analog signals, digital signals, high-frequency signals, etc.
d. Working temperature: Most products can work stably in the temperature range of -20℃ to 80℃, and some special models can adapt to a wider temperature range.
Ⅳ.Application scenarios and equipment types of micro capsule conductive slip rings
Industrial automation field
In the joints of industrial robots, micro capsule conductive slip rings can achieve efficient transmission of power and control signals, helping robots to complete complex and precise movements. Rotating workbenches and testing equipment on small automated production lines also rely on them to achieve uninterrupted power supply and data transmission, improving production efficiency and product quality.
Medical equipment field
In minimally invasive surgical robots, micro capsule conductive slip rings can accurately transmit control signals to each joint of the robotic arm in a small space to ensure accurate surgical operations. In addition, portable medical testing equipment, dental treatment instruments, etc. also benefit from their miniaturization and stable transmission characteristics to achieve more flexible design and more reliable performance.
Consumer electronics field
In order to achieve the function of 360-degree free rotation, wearable electronic products such as smart watches and VR/AR headsets often use micro capsule conductive slip rings to transmit power and data signals. For example, the rotating head display part of the VR device is connected to the device body through a slip ring to ensure that the image and audio signals can be stably transmitted when the user's head turns, bringing an immersive experience.
Aerospace and defense field
In aerospace equipment such as drones and small satellites, micro capsule conductive slip rings undertake key power and signal transmission tasks due to their lightweight and high reliability. In the military field, it can be applied to micro reconnaissance robots, portable communication equipment, etc. to ensure the stable operation of equipment in complex environments.
Ⅴ.How to choose high-quality micro capsule conductive slip rings?
①. Clear usage requirements: First of all, we must be clear about the specific requirements of the signal type, current and voltage, working speed, installation space, etc. that the equipment needs to transmit, and use this as the basis for selecting slip rings.
②. Pay attention to brand and reputation: give priority to brands with good reputation and rich production experience in the industry. Well-known brands are usually more guaranteed in product quality, technology research and development, and after-sales service.
③. Check product certification: ensure that the product has passed relevant quality certifications and industry standards, such as ISO quality management system certification, RoHS environmental protection certification, etc. These certifications are important manifestations of product quality and safety.
④. Test performance indicators: If conditions permit, the key performance indicators of the slip ring can be actually tested, such as contact resistance, insulation resistance, signal transmission stability, etc., to verify whether it meets the use requirements.
⑤. Consider after-sales service: Choose a supplier that can provide complete after-sales service, including technical support, maintenance, product returns, etc., to ensure that problems encountered during use can be solved in a timely manner.
Ⅵ.Maintenance and troubleshooting of micro capsule conductive slip rings
Daily maintenance
Regularly check the appearance of the slip rings to see if there are any wear, scratches, stains, etc., and clean the dust and debris on the surface in time. For equipment with a harsh working environment, the inspection frequency can be appropriately increased. At the same time, pay attention to keeping the installation position of the slip ring stable to avoid affecting its normal operation due to vibration, looseness, etc.
Troubleshooting
When the equipment has problems such as unstable signal transmission and power outages, you can first check whether the connection line of the slip ring is loose or damaged. If the line is normal, you can further detect the contact resistance and insulation resistance of the slip ring to determine whether the contact between the brush and the conductive ring is good, and whether there is a short circuit or open circuit. If the slip ring is found to be severely worn, it should be replaced with a new one in time to ensure that the equipment resumes normal operation.
Ⅶ.Industry Trends: Technological Innovation of Micro Capsule Conductive Slip Rings
With the continuous advancement of science and technology, micro capsule conductive slip rings are also continuing to innovate and develop. In the future, its technological innovation will be mainly reflected in the following aspects: First, further improve the integration level, integrate more functions into a smaller space, and meet the increasingly complex needs of equipment; second, improve the rate and accuracy of signal transmission to adapt to the application scenarios of high-speed data transmission and high-precision control; third, develop new materials, improve the wear resistance, corrosion resistance and high temperature resistance of slip rings, and expand their application areas; fourth, strengthen intelligent design, realize real-time monitoring and fault warning of slip ring operation status, and improve equipment reliability and maintenance efficiency.
Ⅷ.Conclusion: Choose a reliable supplier of micro capsule conductive slip rings
ingiant micro capsule conductive slip rings, adopts brush-type multi-point contact, ensures reliable contact under extremely low friction, can stably transmit analog and digital signals, have ultra-long life, maintenance-free, compact and portable installation. Choosing us can provide products with excellent performance, and can also solve your problems in technical support and after-sales guarantee, and help the equipment run stably and efficiently.
FAQ
Q1: How long is the service life of a micro capsule conductive slip ring?
A1: Its service life is affected by many factors, such as working environment, frequency of use, maintenance, etc. Under normal use and maintenance conditions, it can generally reach tens of thousands of hours or even longer.
Q2: Can micro capsule conductive slip rings be customized according to special needs?
A2: Most professional slip ring suppliers provide customization services, which can customize circuit channels, signal types, size specifications, etc. according to the specific requirements of customers.
Q3: Can micro capsule conductive slip rings work normally in high temperature environments?
A3: The operating temperature range of different types of slip rings is different. Some products are specially designed to operate stably in high temperature environments, but when choosing, you must confirm whether its operating temperature parameters meet the requirements of the actual use environment.
I hope this article can help you. If you have encountered problems related to sealed underwater slip rings in actual applications, or want to further explore some technical points in the article, please feel free to communicate with us.
