In the field of industrial automation and high-end equipment manufacturing, more and more large-scale equipment needs to achieve large current transmission and complex line integration during rotation. Large-diameter current slip rings have become key components to meet such needs due to their unique structural design and powerful transmission performance. From the giant impellers of offshore wind power to the rotating base of giant port cranes, the stable operation of large-diameter current slip rings directly affects the working efficiency and reliability of the equipment. This article will comprehensively analyze the core technology, application scenarios and purchase points of large-diameter current slip rings, and provide professional reference for the selection and maintenance of industrial equipment.
Ⅰ. The importance of large-diameter current slip rings
As industrial equipment develops towards large-scale and integrated directions, traditional slip rings are difficult to meet the dual needs of large-space wiring and high current transmission due to size and performance limitations. The emergence of large-diameter current slip rings has effectively solved this problem. It can not only carry hundreds or even thousands of amperes of current, but also provide integrated channels for other lines such as optical fibers and data lines to achieve synchronous transmission of power and signals. During the operation of large-scale mechanical equipment, large-diameter current slip rings avoid shutdown failures caused by line entanglement and poor contact, ensure production continuity, and provide a hardware foundation for the intelligent upgrade of equipment.
Ⅱ. What is a large diameter current slip ring?

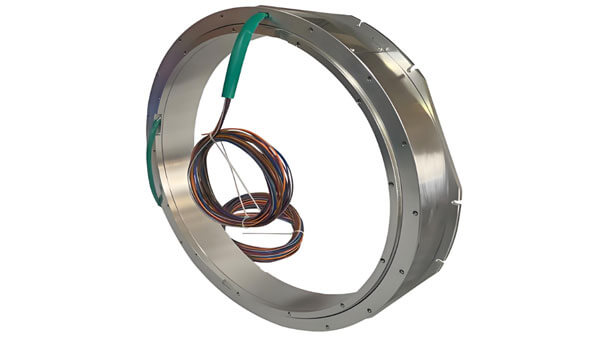

A large-diameter current slip ring refers to a special slip ring with a large central through hole diameter (usually above 50mm, and some can reach hundreds of millimeters). It is mainly used to meet the needs of large rotating equipment for large-space wiring and high current transmission. Its basic structure consists of components such as rotor, stator, brush, conductive ring, etc. Unlike ordinary slip rings, the large-diameter current slip ring is designed to expand the area of the central through hole, and the internal space can accommodate more cables or pipes to pass through, while enhancing the current carrying capacity of the conductive parts.
The working principle of this slip ring is to transmit the current on the rotating part (such as the main shaft of the equipment) to the fixed part through the close contact between the brush and the conductive ring, so as to realize the continuous supply of power between the rotating body and the stationary body. In practical applications, the large diameter design not only facilitates the layout of other pipelines inside the equipment, but also reduces the overall installation complexity of the equipment and improves space utilization.
Ⅲ. Core technical advantages and specific technical parameters of large diameter current slip rings
(I) Core technical advantages
a. Ultra-large space integration capability: The most significant advantage of large-diameter current slip rings is the ultra-large space brought by their central through hole. This design allows hydraulic oil pipes, air pipes, optical fibers and other pipelines to pass through the slip ring at the same time, realizing the integrated transmission of power, signals and fluids. For example, in large shield machines, large-diameter slip rings can not only transmit high-current drive motors, but also synchronously transmit control signals and hydraulic pipelines, simplifying the equipment structure.
b. High current carrying and low loss: High-purity conductive materials (such as oxygen-free copper, silver-plated copper alloy) and large-section conductive ring design are used to reduce resistance during current transmission, reduce heat and loss. At the same time, the optimized contact process between brushes and conductive rings ensures stable contact performance under high current loads and avoids problems such as sparking and oxidation.
c. High strength and stability: Considering the vibration and complex working conditions of large equipment during operation, large-caliber current slip rings usually use high-strength shell materials (such as stainless steel, aviation aluminum alloy) and precise bearing support structures to enhance overall rigidity and impact resistance. Some products are also equipped with redundant designs to ensure the stability of current transmission even if individual brushes are worn.
(II) Specific technical parameters
a. Through hole diameter: Common specifications range from 50mm to 500mm, and special customized products can reach more than 1000mm, which directly determines the number and size of pipelines that can be accommodated inside the slip ring.
b. Rated current: Depending on the model, it can carry a continuous current of 100A to 5000A or even higher, and some products support short-term overload current.
c. Rated voltage: Generally covers 220V - 10kV, adapting to the voltage requirements of different industrial equipment.
d. Contact resistance: The contact resistance of high-quality slip rings is usually controlled below 10mΩ, and the fluctuation range is small to ensure the stability of current transmission.
e. Insulation resistance: The insulation performance is not less than 1000MΩ to prevent current leakage and equipment failure.
f. Protection level: Commonly IP54 - IP68, adapted to different environmental requirements, such as IP68 level can meet the use of underwater operations or high dust environment.
g. Working speed: According to the structural design, the maximum speed can reach 300-1000 rpm, which is suitable for the operating speed of rotating equipment.
IV. Application scenarios and equipment types of large diameter current slip rings
(a) Offshore wind power
In offshore wind turbines, large-diameter current slip rings are used to connect the rotating nacelle and the fixed tower. Its large through-hole can accommodate cables, optical fibers and hydraulic pipelines to achieve power transmission, data communication and blade pitch control. At the same time, the high protection level design enables it to withstand harsh environments such as sea breeze and salt spray, ensuring long-term stable operation of the wind turbine.
(b) Port cranes
When operating, equipment such as port cranes and ship unloaders need to use large-diameter current slip rings to provide high current power to rotating parts and transmit control signals at the same time. The large through-hole design of the slip ring allows cables, gas pipes and other pipelines to be arranged in a centralized manner, reducing the risk of external entanglement and improving the flexibility and safety of equipment operation.
(c) Petrochemicals
In equipment such as oil drilling platforms and chemical reactors, large-diameter current slip rings are not only used to transmit power, but also can integrate gas monitoring lines, temperature sensor signals, etc. Its high protection performance and explosion-proof design meet the safety requirements for use in flammable and explosive environments.
(d) Medical imaging equipment
In CT scanners and MRI equipment, large-caliber current slip rings provide stable power for rotating parts and transmit high-precision image data signals. Its low noise and high stability ensure the accuracy of medical equipment imaging.
Ⅴ. How to choose high quality large diameter current slip rings?
(I) Propose equipment requirements
Determine the required through-hole diameter, rated current, voltage, protection level and other parameters according to the actual working conditions of the equipment. For example, offshore wind power equipment needs to choose slip rings with high protection and large current carrying capacity; medical equipment pays more attention to the stability of signal transmission and low noise performance. At the same time, consider the installation space and rotation speed of the equipment to ensure that the slip ring adapts to the equipment operation requirements.
(II) Check product details
Check the conductive material, manufacturing process and assembly accuracy of the slip ring. High-quality slip rings usually use oxygen-free copper or silver-plated copper alloy conductive rings. The contact surface between the brush and the conductive ring is polished, and the contact is tight and uniform. In addition, check the heat dissipation design and sealing structure of the slip ring to avoid performance affected by overheating or dust and water vapor intrusion.
(III) Choose a strong supplier
Choose a supplier with rich production experience and a complete after-sales system. You can judge its technical strength by checking the company's qualifications (such as ISO certification, CE certification), customer cases and industry reputation. At the same time, priority is given to manufacturers that support customized services to meet equipment requirements under special working conditions.
VI. Maintenance and troubleshooting of large caliber current slip rings
(I) Daily maintenance
Regularly clean the dust and oil on the surface of the slip ring to prevent impurities from entering and affecting the conductive performance; check the wear of the brushes. When the brush wear exceeds 1/3 of the original thickness, it needs to be replaced in time; tighten the installation bolts of the slip ring to avoid loosening due to vibration; use special instruments to detect the contact resistance and insulation resistance of the slip ring to ensure normal performance.
(II) Troubleshooting
If the slip ring has abnormal current transmission (such as heating, voltage fluctuation), first check the contact state between the brush and the conductive ring to see if there are sparks, uneven wear, etc.; secondly, measure the contact resistance and insulation resistance to determine whether there is a short circuit or insulation failure; if there is an abnormal sound inside the slip ring, check whether the bearing is worn or the installation position is offset. For complex faults, it is recommended to contact the manufacturer's technicians for professional maintenance.
Ⅶ. Technological innovation of large diameter current slip rings
In the future, large-diameter current slip rings will develop in the direction of intelligence, integration and greening. On the one hand, by integrating sensors and smart chips, real-time monitoring and early warning of the operating status of the slip ring (such as temperature and wear degree) can be achieved to reduce maintenance costs; on the other hand, combined with wireless transmission technology, the complexity of internal wiring can be reduced and the integration of equipment can be improved. In addition, the application of environmentally friendly materials and low-energy consumption design will also become a new trend in the development of the industry.
Ⅷ. Conclusion: Choose a reliable large-diameter current slip ring supplier
As the core component of large equipment, the performance of large diameter current slip rings is directly related to the operating efficiency and safety of the equipment. Ingiant slip ring manufacturer has been engaged in slip ring manufacturing, production, research and development, and sales for more than ten years. There are thousands of solutions provided to customers, and the praise rate has reached more than 95%.
IX. FAQ
Q1: Can large-diameter current slip rings transmit multiple signals at the same time?
A1:Yes. The internal space of large-diameter current slip rings allows the integration of multiple lines. In addition to power transmission, it can also transmit optical fiber signals, USB data, video signals, etc. at the same time to achieve integrated transmission of power and signals.
Q2: How to determine the service life of slip rings?
A2:The service life of slip rings is affected by factors such as working environment, current load, and maintenance frequency. Generally speaking, under normal working conditions, the service life of high-quality slip rings can reach 5-8 years. Regular maintenance and monitoring can effectively extend its service life.
A3: Can large-diameter current slip rings be customized?
Q3:Ingiant supports customization services. It can adjust parameters such as through-hole diameter, current carrying capacity, and protection level according to customer needs. It can provide special structural design to meet the personalized needs of different equipment.
If you have any ideas about the cases and technical parameters in the article, please feel free to tell us.
