In the field of industrial automation and high end equipment manufacturing, the high speed rotation of equipment places stringent requirements on power and signal transmission. As a key component to achieve a stable connection between rotating parts and stationary parts, high-speed conductive slip rings are playing an irreplaceable role in many industries with their unique performance.
1. Introduce High Speed Conductive Slip Rings

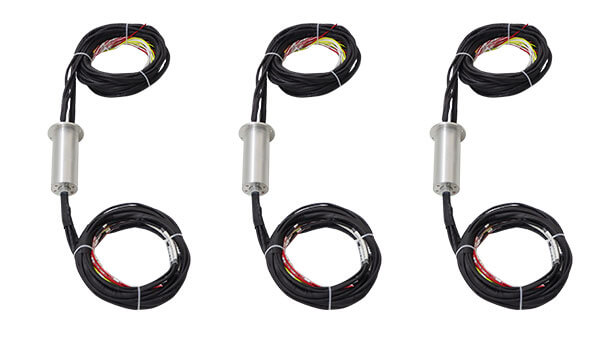

High speed conductive slip rings are precision electromechanical components specially designed for high-speed working conditions. They can achieve uninterrupted transmission of current and data signals when the equipment rotates continuously at a high speed. Compared with ordinary slip rings, high-speed conductive slip rings are more sophisticated in structural design, material selection and manufacturing process. They can usually withstand speeds of thousands of revolutions per minute or even higher, meeting the needs of high-speed application scenarios such as aerospace, high-speed motors, and industrial robots. Its appearance structure is generally composed of core components such as rotors, stators, brushes, and conductive rings. Some high-end slip rings will also integrate auxiliary structures such as precision bearings and protective covers to ensure operational stability.
2. Working Principle
The working principle of high-speed conductive slip rings is based on a contact-type conductive mechanism. During operation, the rotor part of the slip ring is connected to the rotating part of the equipment, and the stator part is fixed to the stationary structure. The brushes are made of special materials with high conductivity and high wear resistance (such as precious metal alloys or high-performance carbon materials) and are in close contact with the conductive rings. When the equipment rotates at high speed, the rotor rotates accordingly, and the current and signal are transmitted from the stationary stator end to the rotating rotor end through the sliding contact between the brushes and the conductive rings, thereby achieving stable transmission of electrical energy and data in a dynamic environment. At the same time, some high-speed conductive slip rings also use special sealing designs and lubrication systems to reduce friction resistance and wear, and further improve transmission performance at high speeds.
3. Advantages and Disadvantages
(I) Advantages
1. High speed adaptability: It can operate stably in a high speed environment and meet the needs of high-speed rotating equipment for power and signal transmission, such as high-speed centrifuges, wind turbine main shaft connections and other scenarios.
2. Strong transmission stability: Through optimized design and precision manufacturing, it ensures stable current and signal transmission during high-speed rotation, reduces signal attenuation and interference, and ensures the normal operation of the equipment.
3. Multi-channel integration: It can integrate multiple independent conductive channels and simultaneously transmit multiple different types of signals (such as power, data, video, etc.) and electric energy of different voltage and current levels, which is suitable for complex industrial control systems.
4. Compact structure: Compared with other transmission methods, high-speed conductive slip rings are small in size and light in weight, which can effectively save equipment space and facilitate installation and integration.
(II) Disadvantages
1. Wear problem: Due to the friction between the brush and the conductive ring, the brush and the conductive ring will wear under long-term high-speed operation, resulting in increased contact resistance and reduced transmission performance, requiring regular maintenance and replacement of parts.
2. Speed limit: Although it has a high speed tolerance, there is still an upper speed limit. If the speed exceeds a certain level, problems such as brush jumping and poor contact may occur, affecting the transmission effect.
3. High cost: High-speed conductive slip rings have strict requirements in material selection, manufacturing process and precision control, resulting in relatively high production costs and selling prices, which increases the overall investment cost of the equipment.
IV. Optional parameters
1. Rated speed: Select a suitable slip ring according to the actual operating speed of the equipment, and ensure that the rated speed of the slip ring is higher than the maximum operating speed of the equipment. Generally, a 20% - 30% speed margin is left to ensure safe and stable operation.
2. Working voltage and current: Clarify the voltage and current required to be transmitted by the equipment, select a slip ring with a rated voltage and current that meets the requirements, and consider a certain overload capacity to avoid damage to the slip ring due to excessive transient current.
3. Number of channels: Determine the number of channels of the slip ring according to the type and number of signals and power supplies to be transmitted to ensure that the transmission requirements of the equipment can be met. For example, an industrial robot may require multiple channels to transmit control signals, power supplies, and feedback signals at the same time.
4. Contact resistance: The smaller the contact resistance, the lower the transmission loss, and the higher the efficiency of signal and power transmission. When selecting, a slip ring with small and stable contact resistance should be selected, especially for application scenarios with high requirements for transmission accuracy.
5. Protection level: According to the working environment of the equipment, select a slip ring with a suitable protection level (such as IP54, IP65, etc.). In harsh environments such as humidity, dust, and corrosive gases, slip rings with higher protection levels are required to ensure their normal operation.
V. Typical applications
1. Aerospace: In the rotating radar antenna of the aircraft, the seeker of the missile, and the attitude adjustment mechanism of the satellite, high-speed conductive slip rings are used to realize the power and signal transmission between the rotating parts and the body, ensuring that the equipment can work reliably under high-speed rotation and complex environments.
2. Industrial Automation: In industrial robots, CNC machine tools, automated production lines and other equipment, high-speed conductive slip rings support the high-speed rotation of the robot arm, realize the stable transmission of power and control signals, and improve production efficiency and accuracy.
3. Energy Industry: The connection between the main shaft and the nacelle of the wind turbine, as well as the connection between the rotating parts and the stationary parts of the turbine, all rely on high-speed conductive slip rings to transmit power and control signals to ensure the stable operation of the power generation equipment.
4. Medical Equipment: In large medical instruments such as CT scanners and nuclear magnetic resonance equipment, high-speed conductive slip rings are used to realize the power supply of rotating parts and image data transmission, helping doctors obtain accurate diagnostic information.
VI. Future development trends
1. Material innovation: With the development of material science, new high-performance materials will continue to be applied to high-speed conductive slip rings. For example, the use of nanomaterials and self-lubricating materials is expected to further reduce the friction coefficient, reduce wear, and improve the service life and reliability of slip rings.
2. Integration and intelligence: In the future, high-speed conductive slip rings will develop in the direction of integration, integrating more functional modules, such as signal amplification, filtering, isolation, etc., and equipped with intelligent monitoring systems to provide real-time feedback on the operating status of the slip rings, realize fault warning and remote maintenance, and improve the intelligence level of the equipment.
3. Ultra-high speed and high precision: With the advancement of industrial technology, the requirements for equipment speed and precision are constantly increasing. High-speed conductive slip rings will develop in the direction of ultra-high speed and high precision to meet the needs of higher performance equipment.
4. Miniaturization and lightweight: In the fields of aerospace, portable equipment, etc., more stringent requirements are put forward for the volume and weight of high-speed conductive slip rings. By optimizing the structural design and adopting new materials, miniaturization and lightweighting of slip rings will become an important development trend.
VII. Frequency ask question
Q1. How long is the service life of a high-speed conductive slip ring?
A1:The service life of a high-speed conductive slip ring is affected by many factors, such as operating speed, environmental conditions, load size, etc. Under normal working conditions, its service life is usually 1-3 years, but regular maintenance and replacement of vulnerable parts can effectively extend the service life.
Q2: How to reduce the wear of high-speed conductive slip rings?
A2:The wear of high-speed conductive slip rings can be reduced by selecting high-quality brush and conductive ring materials, reasonably controlling the operating speed, regularly adding special lubricants, and optimizing the structural design of the slip ring (such as using bearings with low friction coefficients).
Q3:Can high-speed conductive slip rings transmit signals of different frequencies at the same time?
A3:Most high-speed conductive slip rings have multi-channel integration capabilities. As long as the number of channels is sufficient and the channels have good isolation performance, they can transmit signals of different frequencies at the same time. However, when selecting, it is necessary to clarify the transmission requirements to the supplier to ensure that the slip ring meets the use requirements.
