Gimbal Slip Ring: The Core Connecting Device for High-Precision Rotation

       A gimbal slip ring is a key component that enables unrestricted 360° rotation in high-precision heavy-duty equipment. It ensures continuous transmission of power and signals while eliminating cable tangling, balancing mechanical rotation and data communication seamlessly. Its design directly impacts the equipment’s control accuracy, load capacity, and environmental adaptability, making it indispensable in scenarios requiring continuous rotational monitoring.

1.What is a Gimbal Slip Ring?

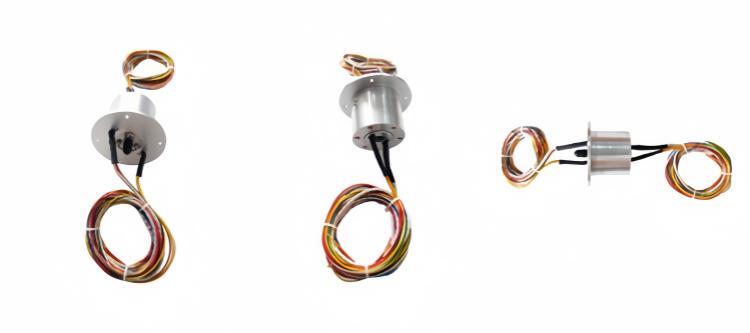

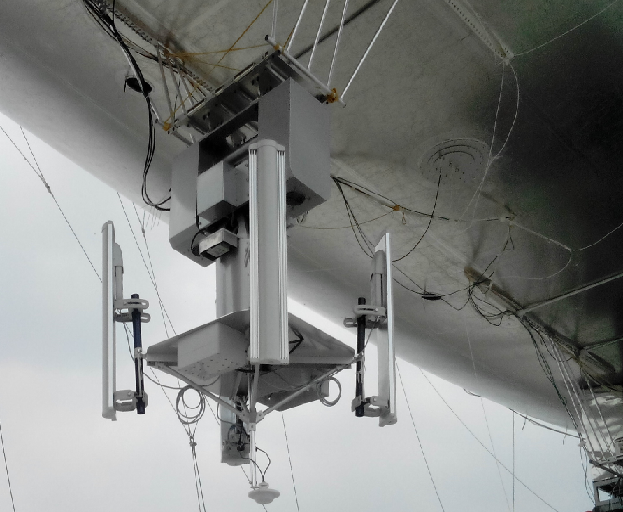

A gimbal slip ring is an electrome chanical component installed at the gimbal’s rotation axis. It achieves uninterrupted transmission of power and signals (e.g., Ethernet, RF signals) between fixed and rotating parts through sliding contact between conductive rings and brushes. In the HP-HX50 gimbal, the slip ring must handle a 50kg load while maintaining control accuracy of ≤0.01°, demanding high material wear resistance and signal transmission stability.

2.Technical Specification Table—-Take the gimbal slip ring of HP-HX50 as an example.

3.Core Functions and Advantages

（1）Unlimited Rotation Transmission

The slip ring’s conductive ring design allows the gimbal to rotate 360° horizontally continuously while maintaining stable power and signal transmission. This eliminates cable breakage or signal interruption caused by tangling, critical for panoramic monitoring in ports and borders.

（2）Multi-Signal Integration

It simultaneously transmits Gigabit Ethernet data, RF signals, and control commands, supporting the collaborative operation of thermal imagers, laser rangefinders, and other devices mounted on the HP-HX50 gimbal, ensuring real-time synchronization of high-definition images and control instructions.

（3）Heavy Load & Precision Compatibility

Slip rings with customized CNC metal structures can withstand 50kg loads. Combined with a self-locking worm gear transmission, they maintain repeat positioning accuracy of ≤0.1° while ensuring smooth rotation, serving as the core guarantee for high-precision control in heavy-duty gimbals.

（4）Harsh Environment Adaptation

The slip ring, together with the gimbal, features a PTA three-proof coating and aluminum alloy housing. It operates reliably in high humidity (≤95%RH), salt spray, and extreme temperatures, suitable for outdoor scenarios like marine ranches and forest fire prevention.

 4.Importance of gimbal slip ring

     Slip rings break through the physical limitations between mechanical rotation and signal transmission. In terms of signal transmission, their 8 Gigabit Ethernet channels ensure delay-free transmission of large-volume signals, with a 1000 Mbps rate meeting the real-time interaction of high-definition video and high-frequency sensor data, avoiding information loss due to signal attenuation or interruption. For RF signal transmission, the standard N-type connector and ≤2dBm loss design ensure stability during rotation, which is crucial in scenarios requiring precise wireless communication.

      In power supply, the 30 power cables enable independent power management for multiple devices. Each 2A current-carrying capacity adapts to components of different powers, while the stable 24Vdc output provides a safe power environment for precision electronic components, avoiding the impact of voltage fluctuations on equipment performance. This multi-channel independent power supply design reduces the impact of single-channel failures on the overall system and improves the flexibility of power distribution.

      Structurally, the application of customized CNC metal materials allows slip rings to be lightweight while having impact resistance and wear resistance. Compared with traditional plastic components, metal-structured slip rings can maintain a lower friction coefficient during long-term high-frequency rotation, extending service life and reducing maintenance frequency. The IP66 protection rating and salt spray resistance enable stable operation in corrosive environments such as coastal areas and industrial zones without frequent replacement or maintenance.

      In addition, the self-protection mechanism of slip rings is indispensable. The built-in surge protection design can resist instantaneous voltage shocks, protecting downstream electronic equipment from damage; while the electrical isolation design from external equipment reduces the impact of electromagnetic interference on signal transmission, ensuring data integrity. In high or low temperature environments, the material stability of the slip ring and its internal heat dissipation structure work together to maintain the stable performance of conductive contacts, avoiding poor contact due to temperature changes.

5.Application Scenarios

The high performance of gimbal slip rings supports the HP-HX50 gimbal in various fields:

• Security Monitoring: Ensures 360° uninterrupted high-definition video transmission in ports and borders.

• Industrial Inspection: Enables full-range detection of large equipment with lasers, guaranteeing complete data transmission.

• Outdoor Environmental Monitoring: Maintains stable operation of meteorological devices in high-temperature, high-humidity, or dusty environments.

6.Conclusion

Though an internal component, the gimbal slip ring directly determines the device’s rotational flexibility, signal stability, and environmental adaptability. The HP-HX50’s slip ring, with multi-channel signal integration, heavy-load design, and robust protection, serves as a reliable “rotational nerve center” for high-precision heavy-duty gimbals, ensuring exceptional performance in harsh conditions.
