DHK010 mini inner hole 10mm through hole slip ring with flange for automation machines

• Through Hole Slip Rings – DHK mini inner hole Series

Available for custom, standard ID 3-500 mm, OD 10-800 mm

DHK010-16-002 series through-hole slip ring combines 1 Ethernet channel, a 10mm hole diameter, a standard 2A/ring, and a maximum of 12 rings. The housing is made of aluminum alloy, with engineering plastic or stainless steel optional. It is designed for stable power or signal transmission in electromechanical systems requiring 360-degree rotation. It can also be combined with gas rotary joints, liquid rotary joints, fiber optic slip rings, etc. to form a multifunctional hybrid slip ring.

• Typical Applications:
DHK010-16-002 series is a 10mm aperture, low-current, integral, precision conductive slip ring. It is primarily used in applications requiring 360-degree continuous rotation and requiring guaranteed power and uninterrupted signal transmission. Applications include winding machines, laser scanners, in-pipe cameras, exhibition/display equipment, food vending machine slip rings, CCD visual inspection equipment, intelligent vision systems, automated assembly machines, rotating LED lights, labeling machines, laboratory equipment, biological testing instruments, and any other device requiring 360-degree rotation, conducting electricity, or transmitting various control signals.

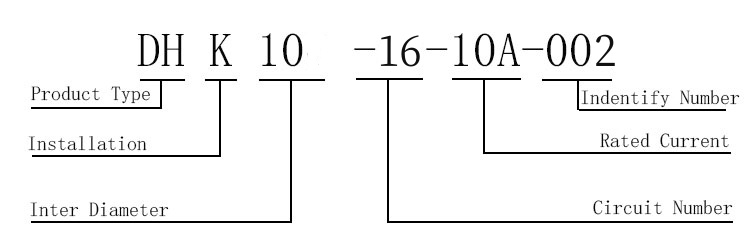

• Product Naming Description

(1)Product type: DH—electric slip ring
(2)Installation method: K—through hole
(3)Through hole product bore diameter10 mm
(4)Total circuits:16 circuits
(5)The rated current or it will not be marked if it passes through a different rated current for the circuits.

(6) Identify number: –XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHK080-24 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHK080-24-002; if there are more of this model in the future, and so on -003 , -004, etc.
• DHK010-16-002 Through Bore Slip Ring Technical Parameters
