Gas electric slip ring OD40mm 2channels gas channels and 6 channels power 2A for Collaborative Robot Joint

2 Passage Pneumatic + Electrical Rotary Joint

◆ Can combine to transmit power and signals

◆ Standard ports M5, can be G1/8, G1/4, G3/8, G1/2, G3/4

◆ Specification can be customized

◆ Housing Material,Aluminum Alloy

◆ Working Temperature, -20℃-+80℃

◆ Working Humidity, 60% RH

◆ Protection Grade, IP51
Typical Applications

This electrical slip ring with a 40mm outer diameter, 2 pneumatic circuits and 6 electrical circuits (2A) is a typical multi-functional component characterized by “compact size, multi-channel capability, and low power consumption.” It is designed for high-precision, highly integrated automated equipment, robotics, and high-end instrumentation.

1.Collaborative Robot (Cobot) Joint

2.Rotating worktable/indexing disc

3.Specialized automation equipment

4.Robot end effector (EOAT)

5.Rotating diagnostic equipment

6.Precision testing equipment

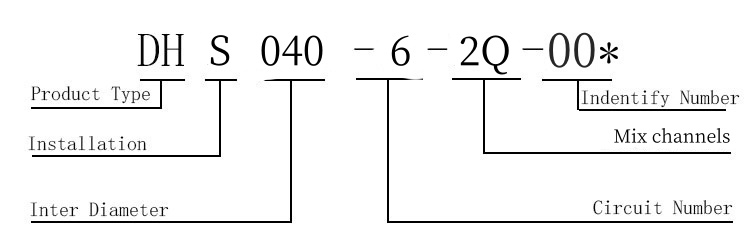

Product Naming Description

1.Product type: DH—electrical slip ring

2.Installation method: S—solid shaft slip ring；S—Solid shaft slip ring

3.Outer diameter : 040-40 mm

4.Number of gas passages: 2Q-2 pneumatic passage

Number + Q- passages number of the gas slip ring; Number + Y – passages number of the liquid slip ring

5.Identify number: –XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: LHS135-2Q-002 ,if there are more of this model in the future, and so on -003 , -004, etc.

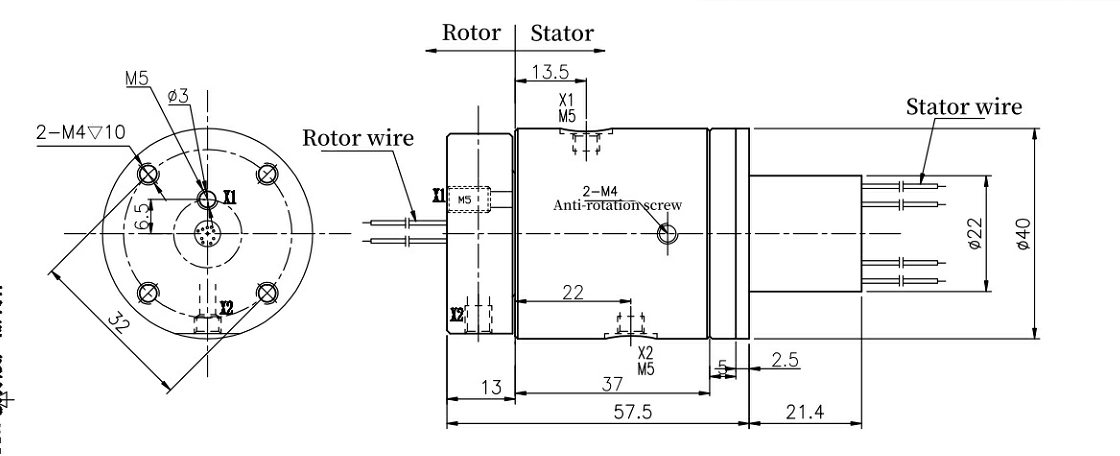

Pneumatic-Electrical Slip Ring Drawing

If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you
