DHK242-60 large inner hole 242mm through hole slip ring

• Through Hole Slip Rings – DHK large inner hole Series

Available for custom, standard ID 3-500 mm, OD 10-800 mm

Inner diameter: 242mm        Outer diameter:308    Number of circuits: 60           Voltage: 24V~380V

DHK242-60 series through-hole slip ring , 60 channels, all-aluminum alloy structure, one-piece through-hole conductive slip ring. Supports signal (2A) or power supply current of 10A, 15A, and 30A, voltage of 380VAC/24VDC, and operating voltage can be customized up to 1000V; protection level can be customized up to IP65/IP68.Used for transmitting power or signals in 360 degree rotating systems. Can be used in automated industrial control systems, automated electrical transmission systems, intelligent filling robots, etc.

• Typical Applications:

• Automatic machinery
• Cable reel
• Robot/Rotation Sensor
• Display/Display Equipment
• Packaging Machinery
• Industrial turntable
• Medical/pharmaceutical equipment
• Marking machine
• Filling Machinery
• CNC machine tool

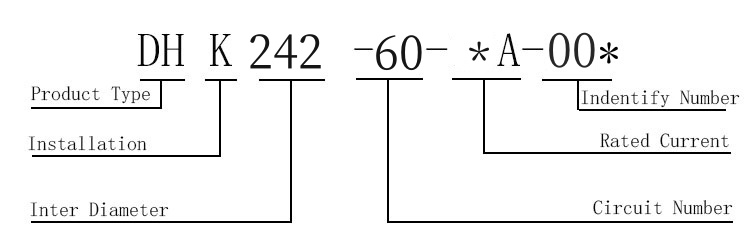

• Product Naming Description

(1)Product type: DH—electric slip ring
(2)Installation method: K—through hole
(3)Through hole product bore diameter 242 mm
(4)Total circuits:60 circuits
(5)The rated current or it will not be marked if it passes through a different rated current for the circuits.

(6) Identify number: –XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHK080-24 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHK080-24-002; if there are more of this model in the future, and so on -003 , -004, etc.
• DHK242-60 Through Bore Slip Ring Technical Parameters
