DHK200 Lrage inner hole 200mm through hole slip ring

• Through Hole Slip Rings with aviation plug- DHK large inner hole Series

Available for custom, standard ID 3-500 mm, OD 10-800 mm

DHK200-58 series is a large inner hole through-hole slip ring with aviation plugs on both the rotor and stator. It is easy to load, replace and install, eliminating the trouble of welding wires and improving stability and reliability.The inner hole is 200mm, the outer diameter is 400mm, and it combines two sets of gigabit networks. It is suitable for rotating electromechanical systems with a diameter less than 200mm. The standard power ring is 30A/ring, with a maximum of 48 rings, and the signal ring is 3A/ring, with a maximum of 96 rings. It adopts stainless steel structure and is used for transmitting power or signals in 360-degree rotating systems. It can be used in automated industrial control systems, automated electrical transmission systems, and intelligent filling robots.

• Typical Applications:

Industrial machining centers, rotary tables, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotary sensors, emergency lighting, robotics, exhibition/display equipment, medical equipment, etc.

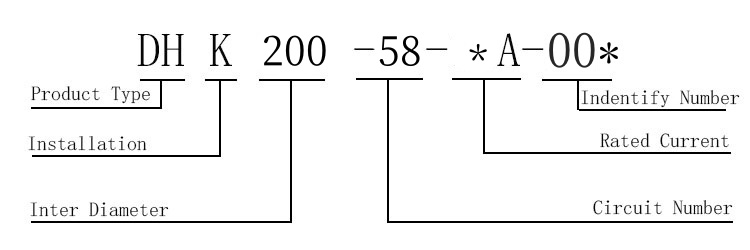

• Product Naming Description

(1)Product type: DH—electric slip ring
(2)Installation method: K—through hole
(3)Through hole product bore diameter10 mm
(4)Total circuits:16 circuits
(5)The rated current or it will not be marked if it passes through a different rated current for the circuits.

(6) Identify number: –XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHK080-24 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHK080-24-002; if there are more of this model in the future, and so on -003 , -004, etc.
• DHK200-58 Through Bore Slip Ring Technical Parameters
