DHK060-10-002 Separate slip rings & 2 parts slip ring for easy and quick installation

Short Description:

DHK060-10-002 Separate slip rings & 2 parts slip ring

DHK060-10-002 Seperate slip rings are available in 10 channels.

Each channel can pass a rated current of 2-10 amps.

The maximum working voltage is 240 volts for alternating current and 440 volts for direct current.

Rotor and brush holder are supplied separately for flexible integration into installations. Rotor unit also available as hollow shaft version with different inner diameters.

Customised and combined power and signal versions possible.

Send email to us

Product Detail

Product Tags

• Separate slip rings & brushes without housing

Slip rings without housing for complete integration into customer systems, individual composition possible

Seperate slip rings have the following advantages:

Extremely space-saving

Extremely low weight

Easily integrated into existing, open systems

Made to standard dimensions

Easy to replace

Repairable within narrow limits

Corrosion-resistant contacts

Minimal wear

• Typical applications:

Actuator motors in hydraulic or pneumatic control systems

Three-phase motors with internal speed monitoring

Rotary switches on control cabinets

Extremely space-saving drive and control combinations for drones and models

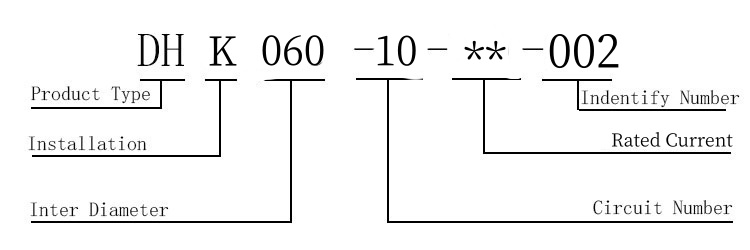

• Product Naming Description

(1)Product type: DH—electric slip ring
(2)Installation method: K—through hole
(3)Through hole product bore diameter 60 mm
(4)Total circuits:10 circuits
(5)The rated current or it will not be marked if it passes through a different rated current for the circuits.

(6) Identify number: –002; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHK080-24 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHK080-24-002; if there are more of this model in the future, and so on -003 , -004, etc.

• Standard outline drawing
