DHK005 Mini inner hole 5mm through hole slip ring

• Through Hole Slip Rings – DHK mini inner hole Series

Available for custom, standard ID 3-500 mm, OD 10-800 mm

DHK005-12 series mini through-hole conductive slip rings have a 5mm bore and a 30mm outer diameter. They are suitable for rotating electromechanical systems with a diameter less than 5mm. They offer a standard 2A per ring and a maximum of 12 rings. The housing is made of special engineering plastics, with aluminum alloy or stainless steel options available.

Product Features

•  Multi-point brush contact design for long service life
•  Integrated structural design for easy installation
•  1-12 circuits, 2A/circuit
•  IP51 protection rating, customizable to IP68
•  Multiple signal integration and compatibility with various data protocols
•  Maintenance-free operation

• Typical Applications:

 Applications include winding machines, laser scanners, in-pipe cameras, exhibition/display equipment, food vending machine slip rings, CCD visual inspection equipment, intelligent vision systems, automated assembly machines, rotating LED lights, labeling machines, laboratory equipment, biological testing instruments, and any other device requiring 360-degree rotation, conducting electricity, or transmitting various control signals.

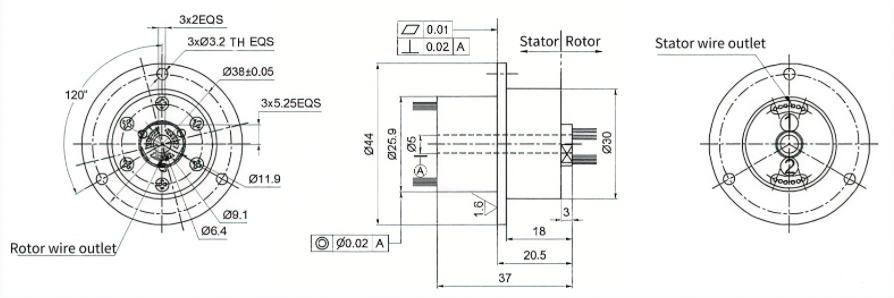

• DHK005 Through Bore Slip Ring 2D Drawing

If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you

• Product Naming Description

(1)Product type: DH—electric slip ring
(2)Installation method: K—through hole
(3)Through hole product bore diameter 5 mm
(4)Total circuits:12 circuits
(5)The rated current or it will not be marked if it passes through a different rated current for the circuits.

(6) Identify number: –XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHK080-24 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHK080-24-002; if there are more of this model in the future, and so on -003 , -004, etc.
• DHK005-12 Through Bore Slip Ring Technical Parameters
