Capsule slip ring DHM022 series 6channels 2 A for Security industry
DHM022 series 360° unrestricted rotating capsule slip ring
Out diameter:22mm Channels:6-36 optional Length:25.8mm
The slip ring and brush surfaces are hard gold-plated, with Gold-gold contacts ensuring stable product performance and extended service life.
The specially designed V-shaped groove structure of the slip ring maximizes contact area with the brush, reducing torque and contact resistance.
It features 24-color coded wires for easy installation. Widely used in civilian applications such as security systems, stage lighting, automated equipment, consumer-grade smart home devices, and high-speed dome cameras.
It can also be configured with parallel rings to design high-current, high-power cap-type conductive slip rings (e.g., 10A, 20A, 30A), suitable for small wind turbines, induction cookers, rotating dining tables, etc.
Product Features:
- ◆ Compact structural design with an outer diameter of only 22mm and length ranging from 25-56.3mm
- ◆ Standard configurations of 6-36 circuits
- ◆ Low starting torque: first 6 circuits below 0.06 N·m
- ◆ Maintenance-free operation
- ◆ Reliable performance
- ◆ Low electrical noise
- ◆ Easy installation
- ◆ Gold-to-gold contact for extended service life
Product Naming Description：
- Product type: DH—electric slip ring
- Installation method: M—Capsule slip ring
- Outer diameter of capsule slip ring: 022-22 mm
- Total circuits: 6-6 circuits
- The rated current or it will not be marked if it passes through a different rated current for the circuits.
- Identify number: –XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHS056-28-5A-002 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHS056-28-5A-002; if there are more of this model in the future, and so on -003 , -004, etc.

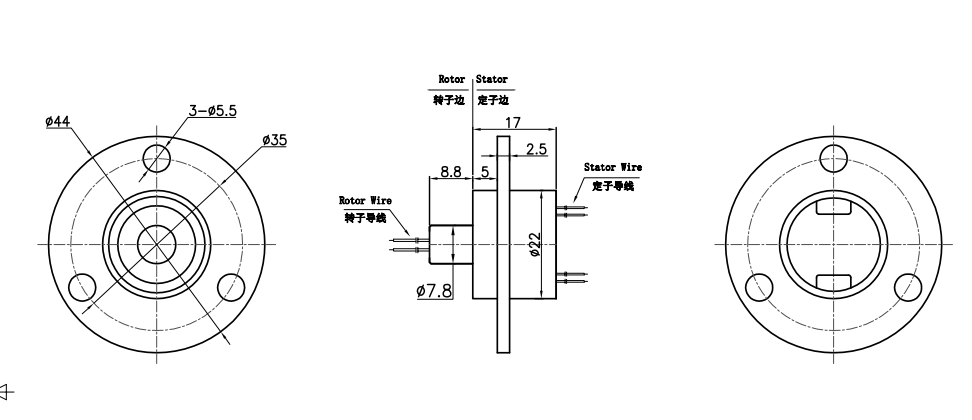

DHM022-6-2A outline drawing:
