2 parts slip ring rotor & stator seperated without housing for power and signal transmission
• DHK028-5 2 parts slip ring rotor & stator seperated
Due to the limited installation size of some customers, our company has developed 2-parts slip ring for customers.
The 2-parts slip ring is an open structure, and the ring channel and brush board are two separate parts.
The rotor and stator can be installed independently and need to be meter for installation.
The split structure can save installation space and weight.
The V-groove gold-plated design is anti-oxidation and wear-resistant.
• 2-parts slip ring can stably transmit power and signal, and is widely used in the following fields:
1. Industrial machinery:
Drilling platform, winding machine, end face processing machine, hot rolling machine
2. Rotary work machine:
Filling machine, bottle blowing machine, amusement equipment
3. Cable drum:
Port machinery, hoisting equipment, road and bridge machinery, tower
4. Test equipment:
Centrifugal test bench, separator, testing instrument
5. Robot:
Packaging equipment, stacker, process control equipment, die press
6. Exhibition / display equipment:
Car booth, revolving door, product booth, revolving restaurant
7. Medical equipment:
Shadow-less surgical lamp, helicopter, radar communication equipment

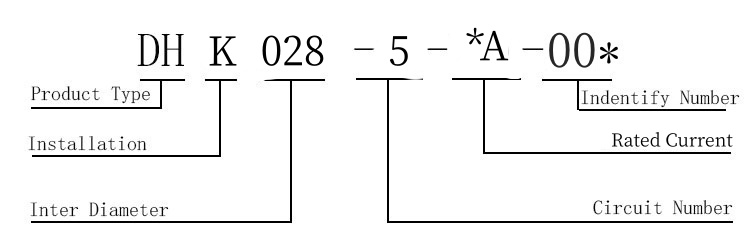

• Product Naming Description
(1)Product type: DH—electric slip ring
(2)Installation method: K—through hole
(3)Through hole product bore diameter 28 mm
(4)Total circuits:5 circuits
(5)The rated current or it will not be marked if it passes through a different rated current for the circuits.
(6) Identify number: –XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHK080-24 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHK080-24-002; if there are more of this model in the future, and so on -003 , -004, etc.
• DHK028-5 Outline drawing:
