2 Parts slip ring inner diameter 006mm 4 channels Separate slip rings
DHK006-4 2 Parts slip ring & Separate slip rings
Slip rings without housing for complete integration in customer systems, individual assembly possible
Rotor and brush holders are supplied separately for flexible integration into systems. Rotor unit also available as hollow shaft version with different inner diameters. Screw or adhesive fastening. Customer-specific and combined power and signal versions possible.
2 Parts slip ring offer the following advantages:
- Extremely compact design
- Ultra-low weight
- Easy integration into existing open systems
- Manufactured to standard dimensions
- Simplified replacement process
- Repairable within confined spaces
- Corrosion-resistant contacts
- Minimal wear
• Typical Applications:
1.Control Motors for Hydraulic or Pneumatic Systems
2.Three-Phase Motors with Integrated Speed Monitoring
3. Rotary Switches (for Control Cabinets)
4. Rotary Switches (for Control Cabinets)

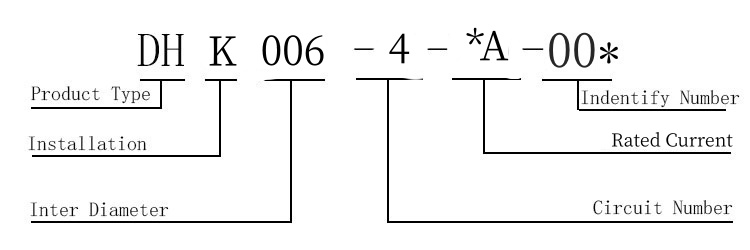

• Product Naming Description
(1)Product type: DH—electric slip ring
(2)Installation method: K—through hole
(3)Through hole product bore diameter 6 mm
(4)Total circuits:4 circuits
(5)The rated current or it will not be marked if it passes through a different rated current for the circuits.
(6) Identify number: –XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHK080-24 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHK080-24-002; if there are more of this model in the future, and so on -003 , -004, etc.
