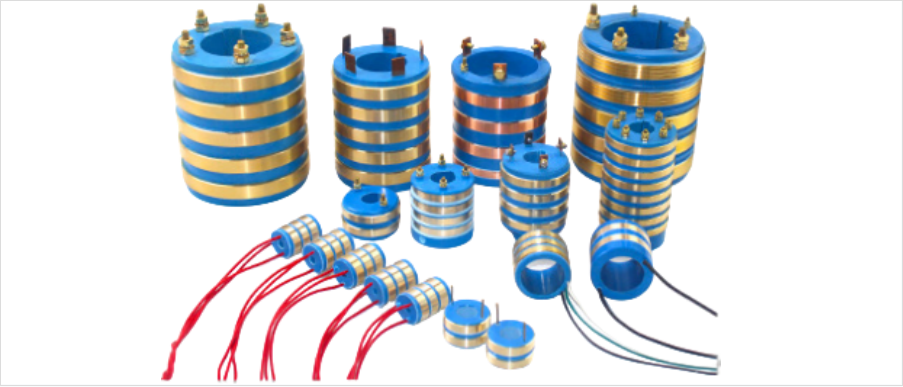

1channel Traditional Collector Slip Ring Rotating Collector Ring With Brushes Carbon Brushes Slip Ring

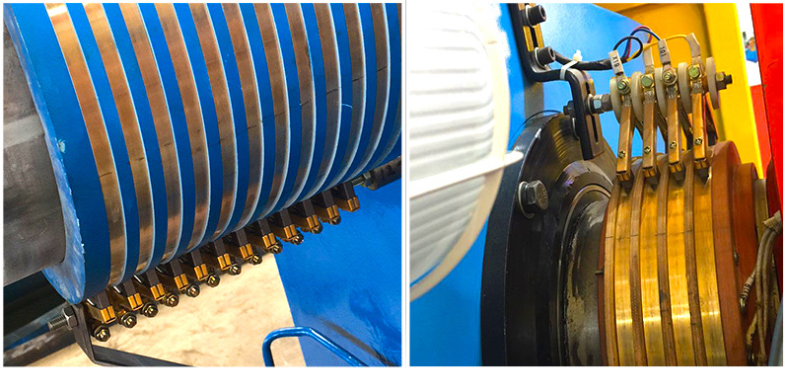

      Carbon brush slip rings are key components in rotating equipment used for continuously transmitting energy and signals,

primarily composed of carbon brushes and slip rings (collecting rings), and widely applied in devices such as motors and generators.

Structure and Function

      Carbon brushes are typically fabricated from graphite, impregnated graphite, or metal graphite, mounted on the surface of commutators or collecting rings,

and transmit current from stationary parts to rotating components through sliding contact.

Slip rings (collecting rings) are mostly made of conductive materials such as red copper or brass, forming an electrical contact with carbon brushes.

 Typical Application: Crane Slewing Center
