100kg Top-Mount Heavy-Duty Pan-Tilt Head | Worm Gear Drive | Power-Off Reverse Self-Locking | Pelco_D Protocol

Short Description:

Product Features

Load capacity ≤100kg; optional data feedback function available.
Power-saving mode supported, reducing power consumption when the pan-tilt is stationary.
Power-off memory function supported, with a repeat accuracy of ±0.1°.
Acceleration/deceleration software design combined with its structure ensures smooth start and braking of the pan-tilt.
Continuous 0°~360° horizontal rotation, with a vertical range of -45°~45°, and speeds of 15°/s (horizontal) and 3°/s (vertical).
High-strength die-cast aluminum alloy housing and high-strength bronze micro-backlash worm gear transmission design, enabling power-off self-locking.

Product Detail

Product Tags

100kg Heavy-Duty Top-Mount Pan-Tilt Head (YJT-EFPTZDU3100-S)

The YJT-EFPTZDU3100-S is a high-performance, heavy-duty pan-tilt head engineered for precision positioning in industrial surveillance, automation, and remote sensing applications. Built to handle loads up to 100kg, this top-mount unit delivers exceptional stability, smooth motion, and reliable performance in even the most demanding environments.

Core Features:

Superior Load Capacity: Supports a massive 100kg top-mounted payload with a robust worm gear drive system, ensuring stable and vibration-resistant operation under heavy loads.
Precision Control: Offers 0°~360° continuous horizontal rotation and a -45°~45° vertical range with variable speed control (0.01~15°/s pan, 0.01~3°/s tilt) and ultra-high repeat accuracy of ±0.1°.
Power-Off Reliability: Equipped with a high-strength micro-backlash worm gear design for inherent power-off self-locking, preventing drift and maintaining position during power outages.
Seamless Integration: Features an RS485 interface (with RS422/RS232 options) supporting the Pelco_D protocol, enabling easy integration with standard control systems. It also supports angle data feedback for real-time monitoring.
Durable Design: Constructed with a high-strength die-cast aluminum alloy housing, IP66 weatherproof rating (with anti-salt fog treatment optional), and device-level lightning protection for longevity in harsh conditions.
Smart Features: Includes power-off memory, power-saving mode, and smooth acceleration/deceleration for optimal energy efficiency and user-friendly operation.

Ideal For

Industrial security and surveillance systems
Large-scale camera platforms
Remote sensing and measurement equipment
Military and aerospace applications
Harsh environment automation and monitoring

This pan-tilt head combines rugged durability with cutting-edge technology, making it the ultimate solution for heavy-load precision positioning needs.

Specification	Details
Model	YJT-EFPTZDU3100-S
Load Capacity	≤100kg
Loading Method	Top Mount
Transmission Mode	Worm Gear Drive
Pan Range	0°~360° Continuous Rotation
Tilt Range	-45°~45°
Pan Speed	0.01~15°/S
Tilt Speed	0.01~3°/S
Repeat Accuracy	±0.1° relative to 0° origin
Presets	≤200
Patrol Scan	Supported
Scan Mode	Patrol Scan
Communication Interface	RS485 (RS422 or RS232 optional)
Communication Protocol	Pelco_D
Baud Rate	9600
Address Code	1
Bottom Wiring	DC24V1, RS4851, RJ451, Ground1; other cables customizable
Top Wiring	DC24V1, DC12V1, RS4851, RJ451, Ground*1; other cables customizable
Data Feedback	Supports query-based azimuth angle data feedback (real-time feedback/RS422 customizable)
Power Supply	DC24V ±10%; ≤115W
Operating Temperature	-35°C~+65°C
Operating Humidity	<90%RH
Lightning Protection	Device-level lightning protection supported
Ingress Protection	IP66 (standard); anti-salt fog treatment optional
Net Weight	≈21kg

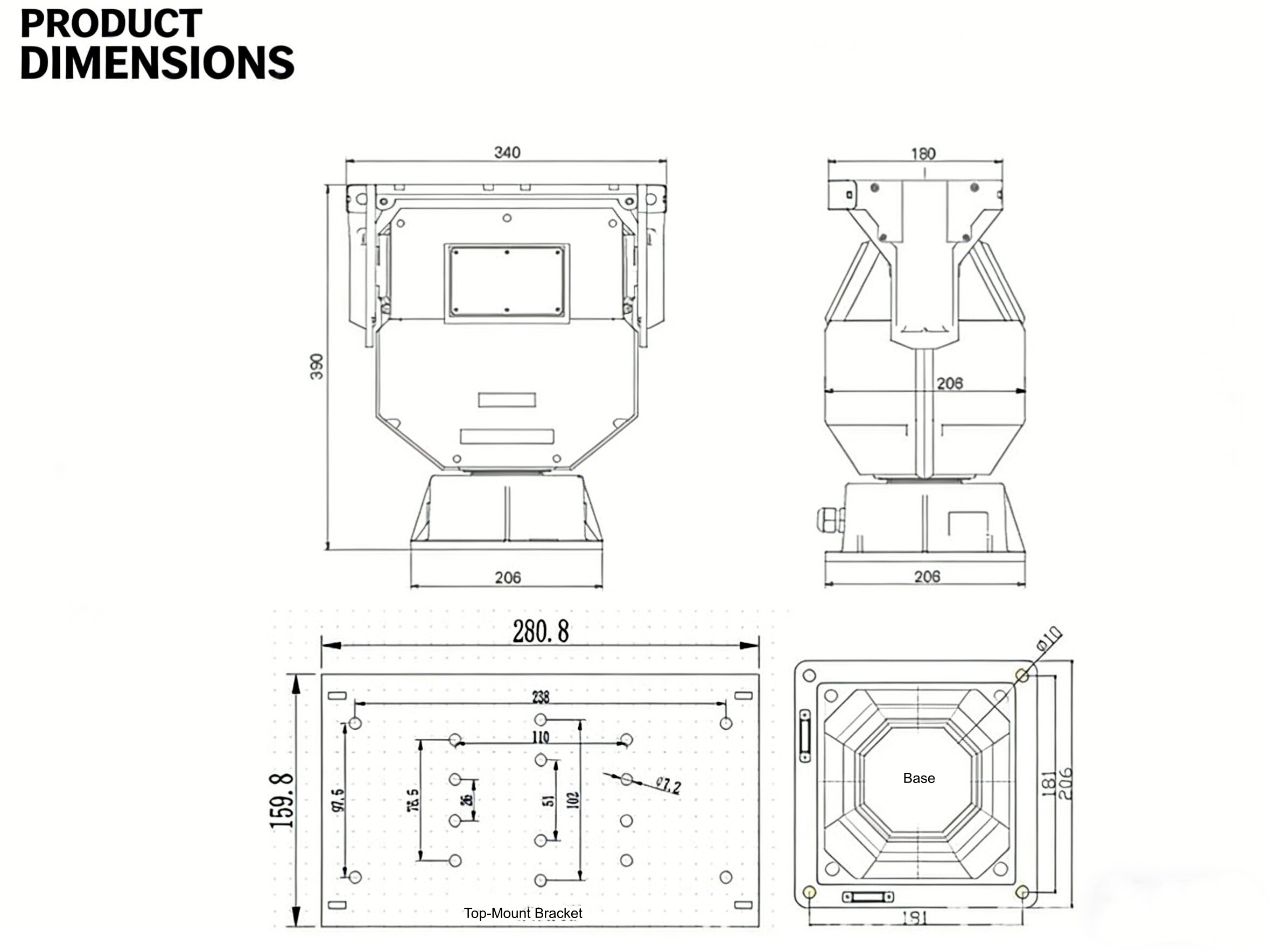

Dimensions	LWH: 340mm × 206mm × 390mm
